Falltech 7291B Leg Bracket Assembly for 7276 Tripod

7291B, Leg Bracket Assembly for 7276 Tripod

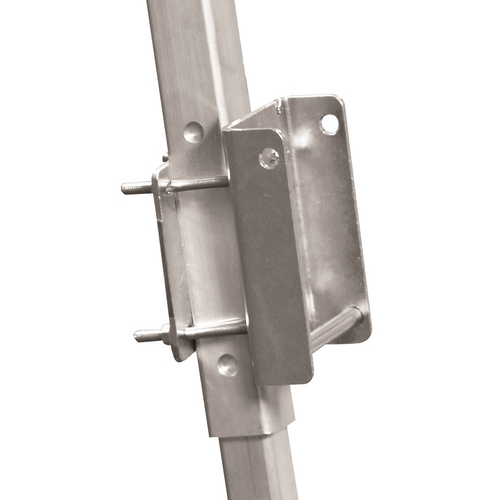

The FallTech® Leg Bracket is for use with the 7276 tripod only. The tripod is primarily for those entering and working in confined spaces, as determined by OSHA. This User Information Sheet is provided to facilitate installation of the tripod leg bracket, P/N. The bracket consists of two plates, a Leg Bracket Back Plate, and Leg Bracket Front Plate, held on to the tripod leg with four bolts, lock washers and nuts. The Leg Bracket Front Plate is equipped with a Leg Bracket Rod, and an Integral Device Securing Detent Pin. It is recommended that the Tripod Leg Bracket be mounted on the leg immediately above the lowest leg adjustment hole pin location.

Applications:

• Position the Leg Bracket Back Plate on the inside of the tripod leg, and the Leg Bracket Front Plate on the outside, with the Leg Bracket Rod at the bottom. Insert the four boltsthrough the bolt holesin both plates.
• Place a lock washer on a bolt and thread a nut onto that bolt finger tight. Do all four bolts. Ensure the bracket is straight, clear of interference, and correctly oriented. Tighten the nuts. Do not over-tighten.
• Place the device in the bracket, engaging the device bracket slots onto the Leg Bracket Rod, and insert the Integral Device Securing Detent Pin.
