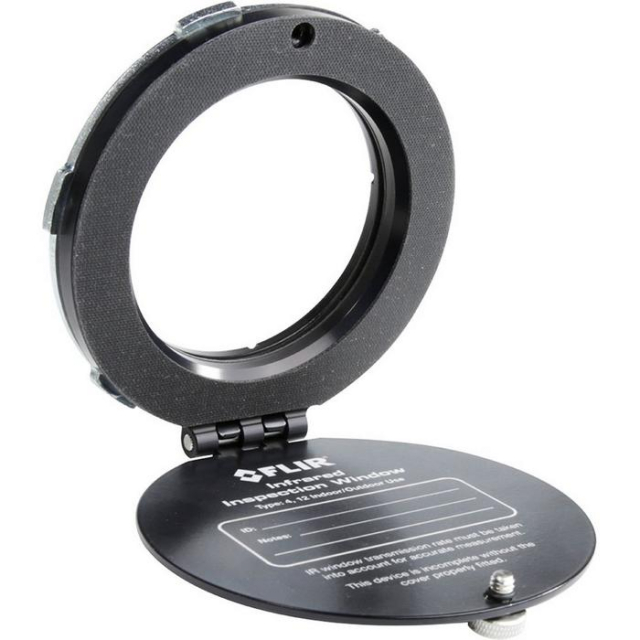

IRW-4C 4" Aluminum Infra Red Inspection Window, O.D. 5.01"

Indoor/Outdoor Rugged Aluminum IR Window (5.01" diameter)

Features:

Arc resistant
For Indoor/Outdoor use
Broadband Crystal
Waterproof meets IP67
Minimizes time and cost of complying with NFPA 70E requirements for electrical inspections
Decreases risk of arc flash incidents and resultant injuries (compared with other inspection methods)

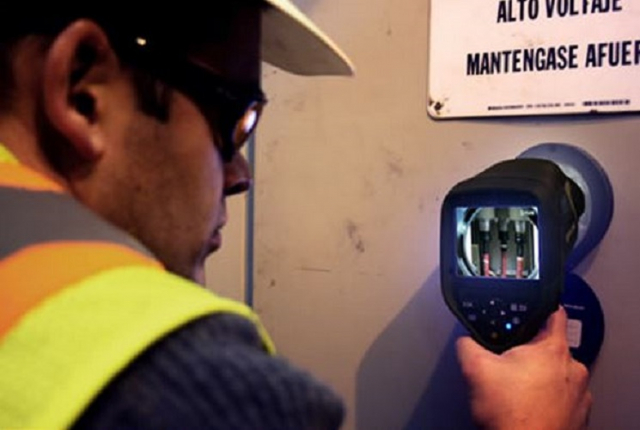

Perform both Visual and Thermal inspections through the broadband crystal window which is compatible with all thermal cameras and UV, Visual and Fusion inspections (Fusion requires a camera with LED light feature)
Integrity and environmental ratings of cabinets are intact even after installation
Rugged anodized aluminum frame & cover
Hinged cover always stays attached to base unit (minimizes risk of dropping parts around electrical cabinets)
Windows are sized to match dimensions of standard knockout punches
Easy to install - 3 step installation
Provides approx. 30x more holding surface area securing the window to the cabinet door (vs. mounting screws)
Mount on steel and Lexan panels
No screw holes to drill or screws to attach
Window labeling/ID# inside the cover
Limited Lifetime Warranty against manufacturer defects

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

NEMA Environment Type	Type 4/12 (outdoor/indoor)
Maximum Operating Temperature	500°F/260°C
Optic Specifications
Crystal Insert Diameter	95mm (3.74")
Viewing Aperture Diameter	89mm (3.50")
Viewing Aperture Area	6221mm² (9.64in²)
Window Thickness	2mm (0.07")
Optic Maximum Temperature	1355.6°C (2474°F)
Voltage Range	Any
Body Material	Anodized Aluminum
Overall Height	136.5mm (5.37")
Overall Width	127.44mm (5.01")
Overall Thickness	29.25mm (1.15")
Required Hole Diameter (Nominal)	4.5" (114.3mm)
Greenlee Punch	742BB
Broadband IR -- Short-, Mid-, & Longwave	x
Visible Light Spectrum	x
Picture-in-Picture & Fusion Image Blending	x
Ratings & Testing
Underwriters Laboratories (UL 50V)	x
UL 50 Environment	Type 4/12
CSA Certification, Product Class 3211 07	x
KEMA (IEC 62271-200)	Arc flast test standard: 5kV, 63kA for 30 cycles at 60Hz
TUV (IEC 60529)	IP67
TUV (IEC 60068-2-6)	100 m/s^2 vibration withstand
TUV (IEC 60068-2-3)	15-day extreme humidity withstand
TUV (ANSI/IEEE C37.20.2 section A3.6)	Impact Resistant Cover
Maximum Pullout Strength	1678 kg (3700 lbs)
Other
Warranty	Limited Lifetime Warranty Against Manufacturer Defects

Notes
