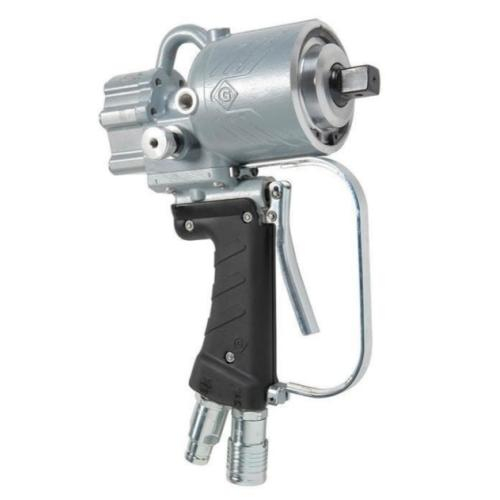

Order HW3 by Greenlee 52063849 Impact Wrench, 3/4" (PKGD)

info@USMegaStore.com

+1 (838) 222-2203
+1 (718) 504-5719 (Intl.)

HW3 Includes Only:

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Application	Impact Wrench
Drive Size	3/4'' Square
Flow Range	4 - 12 GPM (15 - 45 LPM)
Handle Type	Tri-Position auxilary handle
Height	11.8'' (300 mm)
Hydraulic System	Spool Selector For Open And Closed Center Systems
Length	9.3'' (236 mm)
Operating Pressure	1000-2000 psi (69 - 140 bar)
Pressure Port	9/16-18 SAE O-Ring
Replacement	54923 HTMA Male Coupler: HTMA, 3/4-16 SAE O-Ring Exterior Thread, 54925 HTMA Female Coupler: HTMA, 9/16-18 SAE O-Ring Exterior Thread
Return Port	3/4-16 SAE O-Ring
Rpm	2800 rpm at 8 (30 lpm) no load
Torque Rating	1283 FT-LB At 10 GPM (1742 N-M At 37.8 LPM)
Type	Hydraulic, High Torque
Weight	10.5 lbs (4.75 kg)
Width	4.2'' (107 mm)

Application	Impact Wrench
Drive Size	3/4'' Square
Flow Range	4 - 12 GPM (15 - 45 LPM)
Handle Type	Tri-Position auxilary handle
Height	11.8'' (300 mm)
Hydraulic System	Spool Selector For Open And Closed Center Systems
Length	9.3'' (236 mm)
Operating Pressure	1000-2000 psi (69 - 140 bar)
Pressure Port	9/16-18 SAE O-Ring
Replacement	54923 HTMA Male Coupler: HTMA, 3/4-16 SAE O-Ring Exterior Thread, 54925 HTMA Female Coupler: HTMA, 9/16-18 SAE O-Ring Exterior Thread
Return Port	3/4-16 SAE O-Ring
Rpm	2800 rpm at 8 (30 lpm) no load
Torque Rating	1283 FT-LB At 10 GPM (1742 N-M At 37.8 LPM)
Type	Hydraulic, High Torque
Weight	10.5 lbs (4.75 kg)
Width	4.2'' (107 mm)

Note: Please read description carefully. Do not base your order on the picture presented.
