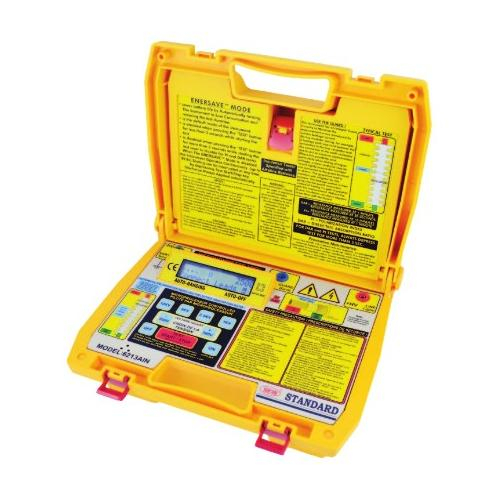

Hoyt 6213AIN Digital High Voltage Insulation Tester

Voltage: 500Vdc to 10kVdc
  • Brand ["extech","flir"] Hoyt
  • Part # 6213AIN

Identifiers

  • Condition
    Brand New
  • Factory warranty
Hoyt
Hoyt 6213AIN
  • List Price
    $2,158.00
    • Sale Price
      $1,726.00 Each
  • Free Shipping

    This item qualifies for Free Ground...

Availability
3-4 Weeks Factory Lead Time
Check Availability
Quantity
Sum.
Share:
  • Send to Email
  • Print
  • List Price
    $2,158.00
    • Sale Price
      Price $1,726.00 Each
      20%
  • Free Shipping

    This item qualifies for Free Ground...

    *
Running Special Offers
Hoyt Special Offer!

Get a FREE GIFT With Your Purchase of Selected Hoyt Products!

Estimated lead time for this item is about 3-4 weeks exclude shipping time.

All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Choose your Gift:

Options and Related Products

Voltage:
Voltage: 500Vdc to 10kVdc

Features:

  • Microprocessor-controlled
  • 2 x 16 characters; large intelligent LCD module
  • 20 Insulation test voltages 500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV, 3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV, 9kV, 9.5kV, 10kV
  • Ener-Save feature to extend battery life
  • Bar-graph indicates test voltage; rise and decay can be observed
  • Visual and audible warning if external voltage is present (>500Vac or Vdc)
  • Insulation resistance; auto-ranging on all ranges
  • Overload protection
  • Low battery indicator (read time battery voltage measurement)
  • Measures insulation time duration of the test
  • Low battery consumption
  • Better than 10% accuracy on all ranges
  • Auto-off
  • Calculates Dielectric Absorption Ratio (DAR) automatically
  • Calculates Polarization Index (PI) automatically

DAR (Dielectric Absorption Ratio)

The dielectric Absorption Ratio is the ratio of the Insulation Resistance measured at 1 min divided per the Insulation Resistance measured at 30 seconds. 30 Seconds after starting a test (with Ener-Save disabled), the tester will beep, indicating the operator that the resistance value measured at 30 seconds now hasbeen saved internally. 1 minute after starting a test (with Ener-Save disabled), the tester will beep again, indicating the user that the DAR result is now computed and change the display format to now display the DAR result.

PI (Polarization Index)

The Polarization Index or PI is the ratio of the Insulation Resistance measured at 10 Minutes divided per the Insulation Resistance measured at 1 minute. 10 minutes after starting a test (with Ener-Save disabled), the tester will beep again, indicating the user that the PI result is now computed and change the display format to now display the PI result. The tester will Auto-Stop at 10 minutes.

Digital Display

The digital Liquid Crystal Display is large. It measures 98 mm. (W) x 24 mm. (D) and has a 2 Lines of 16 characters.

Automatic Battery Test

When the tester starts, it test its batteries by drawing a heavy current from the batteries. During that heavy current, it measures the battery voltage and displays it for a few seconds on the display. During normal use, the tester monitors the battery voltage, but without drawing a battery test current. It just measures the battery while in normal use.

Automatic Discharge of Capacitive and Inductive Circuits

This tester will discharge automatically all circuits charged by the tester, after a test is done, again, this will only be activated if the test leads make contact at any time before, during and after the test. It’s your responsibility to ensure proper contact of the leads at all Times. Once a test is finished, the testers will automatically discharge capacitive or inductive circuit of their charge. The discharge can be observed on the display, in the form of a bar-graph. Again, do not disconnect the leads while discharging. Wait until completion of the discharge before removing any lead. During discharge, the Buzzer will beep and the bar-graph will show some voltage. With some high charges, this may take some time. Be patient and let the instrument discharge completely before proceeding to removing the leads.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Test VoltageFrom 500Vdc to 10kVdc Adjustable in 500V steps
Preset buttons1kV / 2.5kV / 5kV / 10kV
Measuring ranges800kΩ - 500GΩ (auto-ranging)
Accuracy± 5% ± 2 digits
Output power limit1W
Voltage regulationSelected voltage +20%-5% of nominal value unless current limited. Meaning that if output current is too high, the voltage will be lowered automatically.
Dimensions330 (L) x 260 (W) x 160 (D) mm.
Weight (battery included)Approx. 3600 g
Power source1.5V "C" x 8 Alkaline batteries
Safety standard
  • EN 61010-1 CAT III 300V
  • EN 61326-1
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Test VoltageFrom 500Vdc to 10kVdc Adjustable in 500V steps
Preset buttons1kV / 2.5kV / 5kV / 10kV
Measuring ranges800kΩ - 500GΩ (auto-ranging)
Accuracy± 5% ± 2 digits
Output power limit1W
Voltage regulationSelected voltage +20%-5% of nominal value unless current limited. Meaning that if output current is too high, the voltage will be lowered automatically.
Dimensions330 (L) x 260 (W) x 160 (D) mm.
Weight (battery included)Approx. 3600 g
Power source1.5V "C" x 8 Alkaline batteries
Safety standard
  • EN 61010-1 CAT III 300V
  • EN 61326-1
Note

Note: Please read description carefully. Do not base your order on the picture presented.
