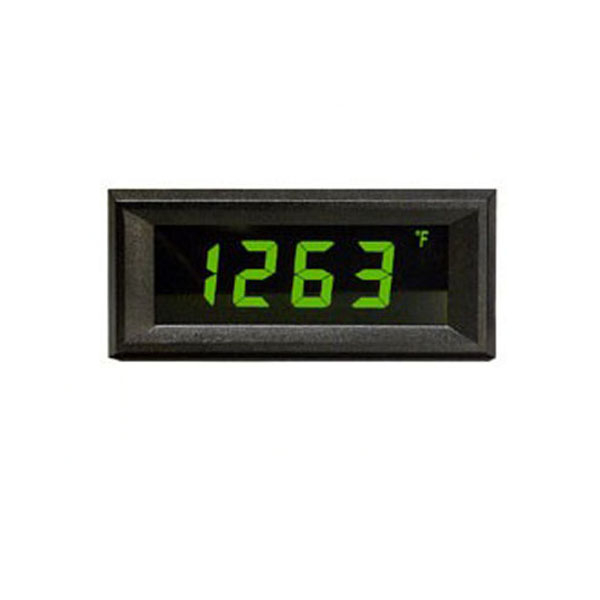

Order HDMO-563 by Hoyt Digital Panel Voltmeter, 20 V DC, Neg Green

info@USMegaStore.com

+1 (838) 222-2203
+1 (718) 504-5719 (Intl.)

Buy in Bulk 4 Applicable Promotion(s)

Buy 20 pcs, get 7% off
Save 7% each on Hoyt HDMO-563 Digital Panel Voltmeter, 20 V DC, Neg Green when you purchase 20 or more
Buy 10 pcs, get 5% off
Save 5% each on Hoyt HDMO-563 Digital Panel Voltmeter, 20 V DC, Neg Green when you purchase 10 or more
Buy 5 pcs, get 3% off
Save 3% each on Hoyt HDMO-563 Digital Panel Voltmeter, 20 V DC, Neg Green when you purchase 5 or more
Buy 3 pcs, get 1% off
Save 1% each on Hoyt HDMO-563 Digital Panel Voltmeter, 20 V DC, Neg Green when you purchase 3 or more

Quantity

Options and Related Products

Features

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Display
Digits	3.5 (±1999 count)
Type	0.45" (11.4 mm) 7 segment LCD
Backlighting	Green Negative
Polarity	automatic, "-" displayed
Annunciators	°F, °C, PSI, %, user-selectable
Decimal Points	3 position, user-selectable
Overrange	three lower order digits blank for inputs >1999
Inputs
Ranges	±20 V
Configuration	bipolar differential
Protection	±350 VDC, (±100 VDC on 200 mV range)
Impedance	1000 MΩ on ± 200 mV; (1 MΩ on 2 V & 20 V range)
Bias Current	1 pA (± 200 mV), 100 pA (other ranges)
Performance
Accuracy	± (0.1% fs + 2 count)
Conversion Rate	3 per second
Normal Mode Rejection	>30 dB / 60 Hz.
Common Mode Range	±1 VDC max
Common Mode Rej.	>86 dB
Zero Adjustment	automatic
Warmup	10 minutes typical
Temperature Coeff.	±100 ppm per °C typical
Power Supply
Supply Voltage	5 VDC at 3.5 mA max
Optional Backlight	24 VDC at 35 mA, 5 VDC at 130mA typical
Environment
Operating Range	0 to 50 °C
Storage Range	-20 to 70 °C
Mounting	snap-in bezel mount
Connection	13 pins, 0.025" square

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Display
Digits	3.5 (±1999 count)
Type	0.45" (11.4 mm) 7 segment LCD
Backlighting	Green Negative
Polarity	automatic, "-" displayed
Annunciators	°F, °C, PSI, %, user-selectable
Decimal Points	3 position, user-selectable
Overrange	three lower order digits blank for inputs >1999
Inputs
Ranges	±20 V
Configuration	bipolar differential
Protection	±350 VDC, (±100 VDC on 200 mV range)
Impedance	1000 MΩ on ± 200 mV; (1 MΩ on 2 V & 20 V range)
Bias Current	1 pA (± 200 mV), 100 pA (other ranges)
Performance
Accuracy	± (0.1% fs + 2 count)
Conversion Rate	3 per second
Normal Mode Rejection	>30 dB / 60 Hz.
Common Mode Range	±1 VDC max
Common Mode Rej.	>86 dB
Zero Adjustment	automatic
Warmup	10 minutes typical
Temperature Coeff.	±100 ppm per °C typical
Power Supply
Supply Voltage	5 VDC at 3.5 mA max
Optional Backlight	24 VDC at 35 mA, 5 VDC at 130mA typical
Environment
Operating Range	0 to 50 °C
Storage Range	-20 to 70 °C
Mounting	snap-in bezel mount
Connection	13 pins, 0.025" square

Note: Please read description carefully. Do not base your order on the picture presented.
