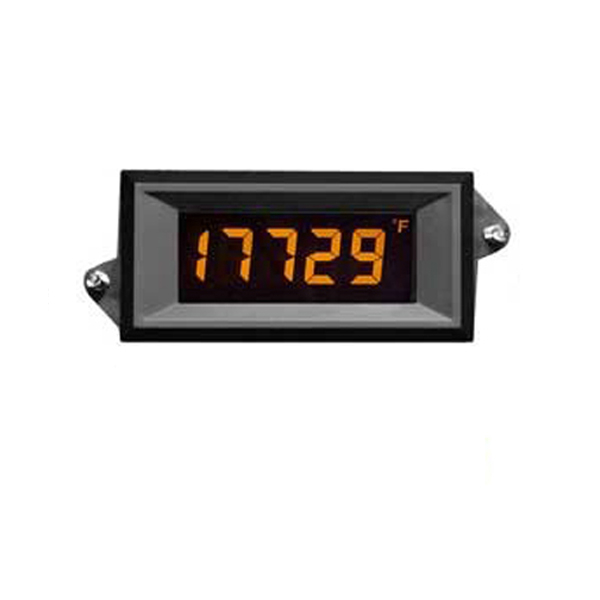

Order HLPI-4A-XEC by Hoyt DC Milliammeter, 4.5 LCD, Neg Amber

info@USMegaStore.com

+1 (838) 222-2203
+1 (718) 504-5719 (Intl.)

Options and Related Products

Features

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Display
Digits	4.5 digits (±19999 counts)
Type	0.45" (11.4 mm) 7 segment LCD Optional Amber backlit LCD
Polarity	automatic, "-" displayed
Annunciators	°F, °C, PSI, %, user selectable
Decimal Points	4 position, user selectable
Overrange	4 lower order digits blank for inputs >1999 & < -1999
Inputs
Ranges	4-20 mA DC
Configuration	bipolar, differential
Impedance	300Ω nominal
Performance
Accuracy	±(0.1% +2 count)
Conversion Rate	3 per second
Normal Mode Rejection	>30 dB / 60 Hz.
Common Mode Range	±1 VDC (5 V powered)
Common Mode Rej.	>86 dB
Warmup	10 minutes typical
Temperature Coeff.	±100 ppm per °C typical
Power Supply (powered by the milliamp control loop)
Optional Backlight	24 VDC at 35 mA typical
Environment
Operating Range	0 to 50 °C
Storage Range	-20 to 70 °C.
Mounting	nap-in panel mount or clamp and gasket
Connection	2 screw terminal (4 with backlight)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Display
Digits	4.5 digits (±19999 counts)
Type	0.45" (11.4 mm) 7 segment LCD Optional Amber backlit LCD
Polarity	automatic, "-" displayed
Annunciators	°F, °C, PSI, %, user selectable
Decimal Points	4 position, user selectable
Overrange	4 lower order digits blank for inputs >1999 & < -1999
Inputs
Ranges	4-20 mA DC
Configuration	bipolar, differential
Impedance	300Ω nominal
Performance
Accuracy	±(0.1% +2 count)
Conversion Rate	3 per second
Normal Mode Rejection	>30 dB / 60 Hz.
Common Mode Range	±1 VDC (5 V powered)
Common Mode Rej.	>86 dB
Warmup	10 minutes typical
Temperature Coeff.	±100 ppm per °C typical
Power Supply (powered by the milliamp control loop)
Optional Backlight	24 VDC at 35 mA typical
Environment
Operating Range	0 to 50 °C
Storage Range	-20 to 70 °C.
Mounting	nap-in panel mount or clamp and gasket
Connection	2 screw terminal (4 with backlight)

Note: Please read description carefully. Do not base your order on the picture presented.
