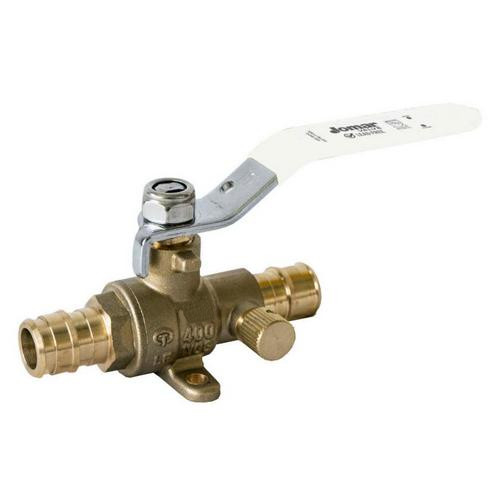

T-423G Lead Free Brass Ball Valve 1/2"

Lead Free Brass Ball Valve.

Features:

Standard port.
Expansion pex connection.
With stainless steel ball and stem.
With drain.
Gland follower and single o-ring stem design.
Blow-out proof stem.
100% leak tested.
Wetted surfaces contain less than .25% lead content.
Body rated to 400 WOG.
Expansion connection rated to 150 WOG up to 200 F.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

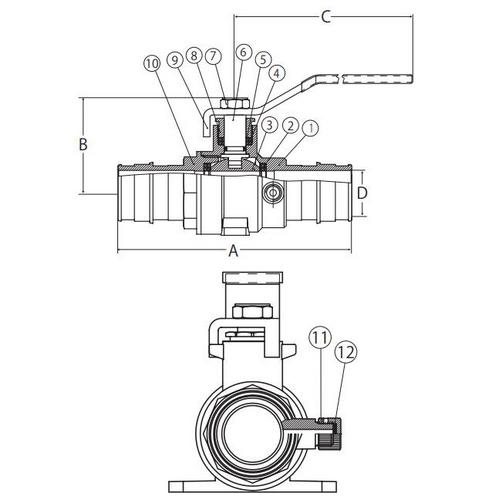

Technical Details

Dimensions
Size	1/2"
A	2.98
B	1.69
C	3.35
D	0.39
E	1.45

Material Specifications
No.	Part	Materials
1	End Connection	Lead Free Brass - C46400
2	Seat	PTFE
3	Ball	304 Stainless Steel
4	Packing	PTFE
5	O-ring	Buna-N
6	Stem	304 Stainless Steel
7	Handle Nut	Steel - Chrome Plated
8	Handle	Steel - Chrome Plated
9	Packing Nut	Brass - C37700
10	Body	Lead Free Brass - C46400
11	Cap	Brass - C37700
12	Gasket	EPDM

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions
Size	1/2"
A	2.98
B	1.69
C	3.35
D	0.39
E	1.45

Material Specifications
No.	Part	Materials
1	End Connection	Lead Free Brass - C46400
2	Seat	PTFE
3	Ball	304 Stainless Steel
4	Packing	PTFE
5	O-ring	Buna-N
6	Stem	304 Stainless Steel
7	Handle Nut	Steel - Chrome Plated
8	Handle	Steel - Chrome Plated
9	Packing Nut	Brass - C37700
10	Body	Lead Free Brass - C46400
11	Cap	Brass - C37700
12	Gasket	EPDM

Note: Please read description carefully. Do not base your order on the picture presented.
