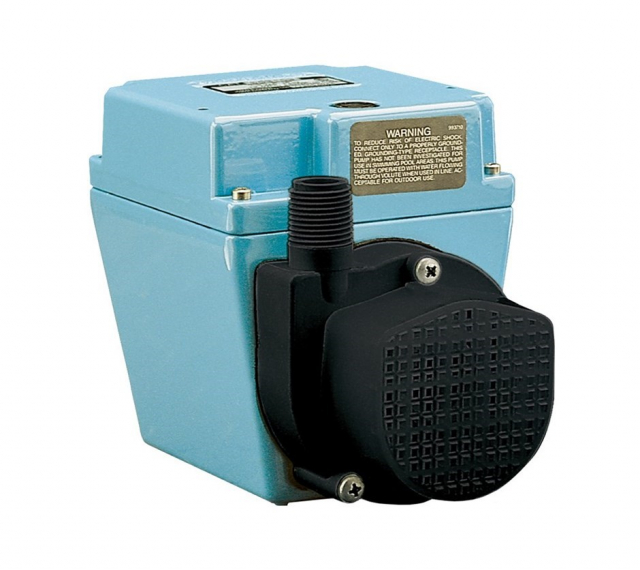

Little Giant, 504203, 4E-34NR 1/12 hp 670 gph Small Submersible Pump, 115V - 60Hz
Small submersible oil-filled pump with epoxy coated cast aluminum housing. For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 810 GPH pump features a 1/2" MNPT discharge, 24.5' shut-off head capability, and screened inlet.
Features:
- Epoxy coated die-cast aluminum housing
- Oil-filled motor
- 24.5' maximum lift
- 210 watts
- 1/2" MNPT discharge
- Thermal overload protection
- For submersible use only
Construction:
- Motor — 1/12 HP
- Intermittent Liquid Temp. up to — 120°F
- Intake — 3/4" FNPT
- Discharge — 1/2" MNPT
- Housing — Epoxy coated cast aluminum
- Cover — Epoxy coated cast aluminum
- Volute — Nylon
- Impeller — Nylon
- Shaft Seal — Viton®
- Screen — Polypropylene
Applications:
- Submersed or in-line use, water transfer or recirculation, water displays, air conditioners and machine tool coolants
Performance:
