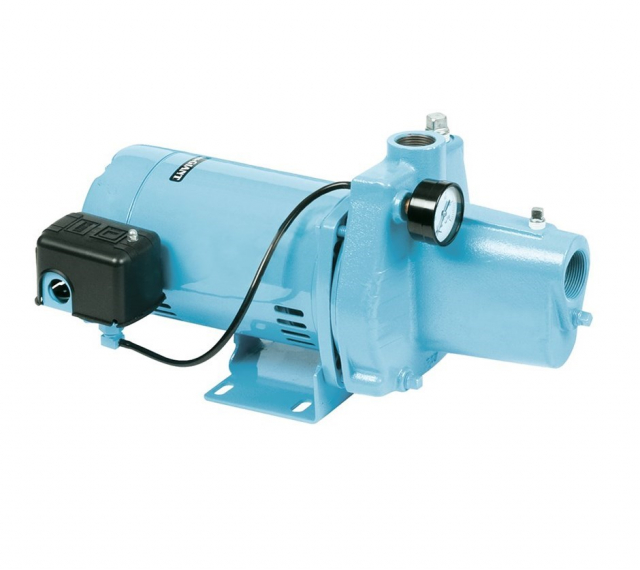

Little Giant 558276 JP-100-C 1 hp Shallow Well Jet Pump, 115/230V

HP: 1
  • Brand Little Giant
  • Part # 558276
  • Model # JP-100-C
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

HP:
HP: 1

JP-100-C 1 hp Shallow Well Jet Pump, 115/230V

Includes:

  • Pressure gauge

Features:

  • Cast iron casing and seal plate for durability and long life
  • Dual voltage 115/230 V
  • Pressure switch preset at 30/50 psi

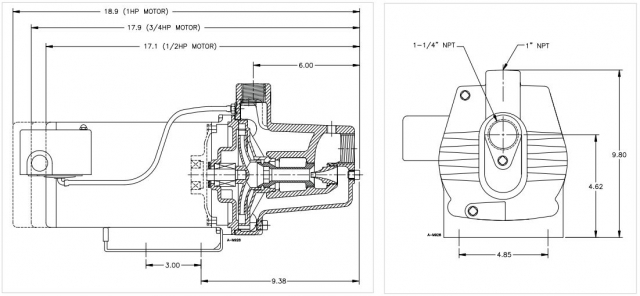

  • 1-1/4" (31.7 mm) suction, 1" NPT (25.4 mm) discharge
  • Stainless steel motor shaft and dual ball bearings
  • Precision-engineered thermoplastic impeller, diffuser, nozzle,and venturi
  • Clean-out plug to easily unclog nozzle
  • Fully serviceable with two-year warranty

Applications:

  • For supplying fresh water to rural homes, farms, and cabins
  • For installations where the vertical distance from the pump to the pumping water level does not exceed 25 feet (7.6 m)

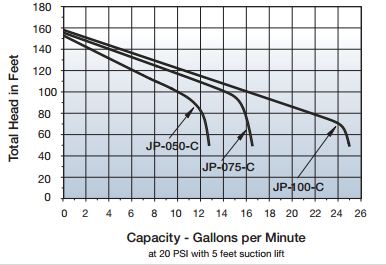

Performance:


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Total SuctionPump Capacity GPM (LPM) Discharge Pressure in PSIMaximum
Lift (ft. / m)20253035404550556065Pressure
5(1.5)24.8 (93.9)24.7 (93.5)23.2 (87.8)19.8 (75)16.5 (62.5)13.1 (49.6)9.5 (36)6.3 (23.9)3.4 (12.9)0.5 (1.9)66.2 (4.7kg/cm2)
10(3.1)21.5(81.4)21.2 (80.3)20.1 (76.1)18.4(69.7)15.2 (57.6)11.5 (43.6)7.9 (29.9)4.9(18.6)2.4 (9.1)-64.2 (4.5kg/cm2)
15(4.6)18.1 (68.5)17.8 (67.7)17.4(65.9)16.7(63.2)13.8 (52.2)10.3(39)6.9 (26.1)4(15.1)1.3(4.9)-62.1 (4.4kg/cm2)
20 (6.1)14.4(54.5)14.3 (54.2)14.2(53.8)14.6(55.3)12.3(46.7)9(34.1)5.3 (20.1)2.3 (8.7)0.2 (.6)-60.1 (4.2kg/cm2)
25 (7.6)10.5(39.8)10.5 (39.8)10.4 (39.4)10.3(39)8.8 (33.3)7 (26.5)4.2 (15.9)1.3 (4.9)--57.2 (4kg/cm2)
Product Details
Total SuctionPump Capacity GPM (LPM) Discharge Pressure in PSIMaximum
Lift (ft. / m)20253035404550556065Pressure
5(1.5)24.8 (93.9)24.7 (93.5)23.2 (87.8)19.8 (75)16.5 (62.5)13.1 (49.6)9.5 (36)6.3 (23.9)3.4 (12.9)0.5 (1.9)66.2 (4.7kg/cm2)
10(3.1)21.5(81.4)21.2 (80.3)20.1 (76.1)18.4(69.7)15.2 (57.6)11.5 (43.6)7.9 (29.9)4.9(18.6)2.4 (9.1)-64.2 (4.5kg/cm2)
15(4.6)18.1 (68.5)17.8 (67.7)17.4(65.9)16.7(63.2)13.8 (52.2)10.3(39)6.9 (26.1)4(15.1)1.3(4.9)-62.1 (4.4kg/cm2)
20 (6.1)14.4(54.5)14.3 (54.2)14.2(53.8)14.6(55.3)12.3(46.7)9(34.1)5.3 (20.1)2.3 (8.7)0.2 (.6)-60.1 (4.2kg/cm2)
25 (7.6)10.5(39.8)10.5 (39.8)10.4 (39.4)10.3(39)8.8 (33.3)7 (26.5)4.2 (15.9)1.3 (4.9)--57.2 (4kg/cm2)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
