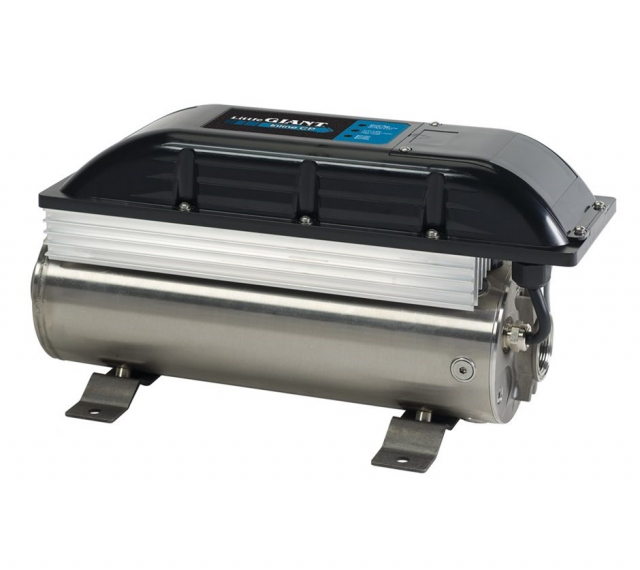

Inline CP 25LGIL1100N4 Single-Phase Constant Water Pressure System, 230V

Includes:

Features:

Increase pressure by up to 60 psi
Handles up to 35 gpm
Complete packaged system
Small and compact design
Simple and easy installation
NEMA 4 electronics enclosure
Mount in any configuration
Product power rating: 1.2 hp, 0.9 kW
Built in system protections guard the Inline CP from many common failure modes including: surge protection, voltage underload, locked pump, open circuit, short circuit, and overheated controller.
Capable of operating with more than one pump in parallel for larger volume demand applications

Applications:

Performance:

Note: Running outside of 'Recommended Operating Range' for short periods of time is permissible.

Item	Description
1	Outer Shell	300 Series SS -1.5 mm thick
2	Suction/Discharge	304 SS Casting. 1.25" NPT thread. Integrated ears to be able to hold other types of flanges if required
3	O-Rings	NBR - Nitrile Buna Rubber - Temp, rated to 104 °F (40 °C)
4	Pump Mechanical Seal	Carbide/Ceramic/Buna Rubber Seals
5	Internal Motor Seal	Silicon/Carbide/Buna Rubber Seals
6	Outer Shell Screws and Inserts	316 SS
7	Pump Hydraulics	i.e. Impellers, Diffusers, Bowls - 316SS
8	Floating Seal Rings	PTFE
9	Motor	Dry Design
10	Motor Bearings	Ball Bearing Type - 6202 double sealed on discharge end, 6303 - suction side - double sealed All pre-greased and rated to 104 °F (40 °C)
11	Motor Shaft	304 SS
12	Motor Insulation	Class - F - IP68 rated
13	Motor Lead	14Ga SJOOW
14	Motor Cable Gland	CuZu - Nickel plated brass
15	Motor Lead Washers	304 SS
16	Motor Lead Rubber Seal	Nitrile
17	Oil Chamber (Motor)	Filled with medical qrade white oil - Marcol 82
18	Heat Sink	Die cast aluminum
19	Drive Enclosure Material	Polycarbonate (Flame Retardant, UL 94 V-0)
20	Drive Gaskets	Close Cell Foam Nitrile Rubber
21	Drive Fasteners	304 SS
22	Mountinq Base	300 Series SS
N/A	Shaft Coupling	304 SS (Not Shown)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Flow range	Up to 35 gpm (135 lpm)
Product power rating	1.2 hp (0.9 kW)
Minimum incoming pressure	3 - 5 psi (0.2 - 0.3 bar)
Minimum incoming flow and cisterns	flooded suction without water vortexing
Maximum incremental pressure boost	60 psi (4.1 bar)
Maximum ambient operating temp	Continuous Operation: 104 ºF (40 ºC)
Maximum fl uid operating temp	104 ºF (40 ºC)
Incoming voltage	190 - 260 vac*
Frequency	50/60Hz
Operating frequency range	20-63Hz
Current (maximum)	12 Amps (rms)
Pressure setting from factory	50 psi (3.4 bar)
Pressure adjustment range	25 - 80 psi (1.7 - 5.5 bar)
Relative humidity	0 - 100%, Condensing
Shipping weight	50 lbs
*Drive will operate at reduced power level at 190 vac.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Flow range	Up to 35 gpm (135 lpm)
Product power rating	1.2 hp (0.9 kW)
Minimum incoming pressure	3 - 5 psi (0.2 - 0.3 bar)
Minimum incoming flow and cisterns	flooded suction without water vortexing
Maximum incremental pressure boost	60 psi (4.1 bar)
Maximum ambient operating temp	Continuous Operation: 104 ºF (40 ºC)
Maximum fl uid operating temp	104 ºF (40 ºC)
Incoming voltage	190 - 260 vac*
Frequency	50/60Hz
Operating frequency range	20-63Hz
Current (maximum)	12 Amps (rms)
Pressure setting from factory	50 psi (3.4 bar)
Pressure adjustment range	25 - 80 psi (1.7 - 5.5 bar)
Relative humidity	0 - 100%, Condensing
Shipping weight	50 lbs
*Drive will operate at reduced power level at 190 vac.
