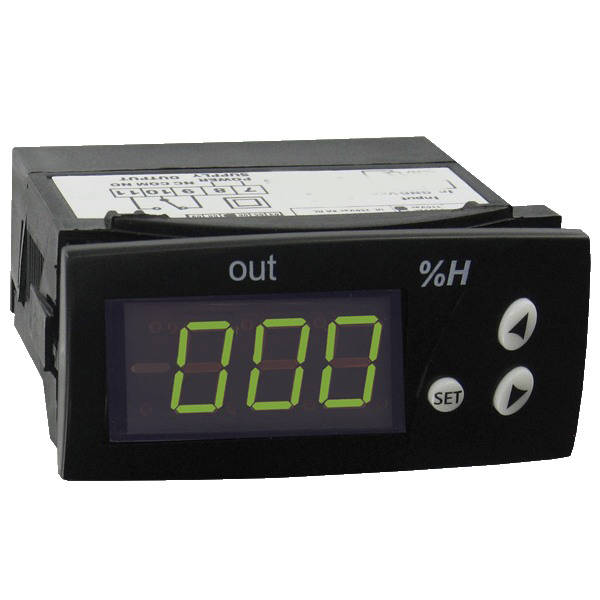

Love Controls, HS-112, Series HS Humidity Switch, 0-1 V Input Sensor, 230 VAC
Programmable, 8 Amp Relay, 3-Digit Display
The microprocessor based Series HS Humidity Switch provides control for humidifying or dehumidifying. Relative humidity, output status, and error messaging can be viewed on the bright green LED. The switch features 9 user defined parameters including setpoint, hysteresis, control type, cycle time, and probe adjustment. Access to programming parameters can be locked for security purposes using the password protection feature. The Series HS includes a fitting clip for panel mounting, gasket, rear terminal cover, and instruction manual.
Product Applications
- Industrial Chillers
- Environmental Chambers
- Walk-ins and Freezers
- Heat Sealers
- Beer and Wine Chillers
- Mug Frosters
- Coolers
- Display Cases and Cabinets
- Meat and Produce Storage
- Floral Preservation
- Refrigerated Transportation
- Laboratories
- Food Service Equipment
- Ovens and Dryers
- Greenhouses
- Museums
- Tobacco Preservation
- Monitor Humidity in Ducts
Approvals
- CE Approval
- UL-Temperature Indicating-Regulating Equip-US
