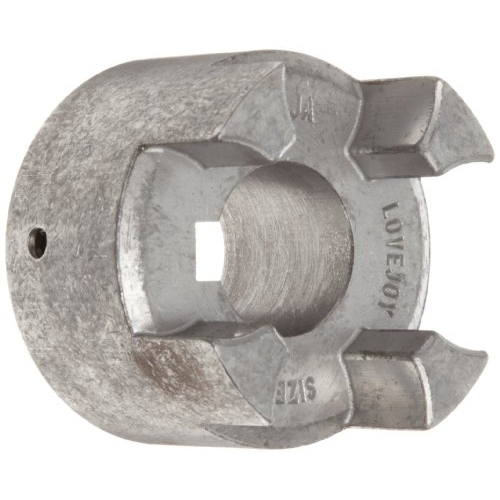

A complete CJ Series coupling is comprised of two standard CJ hubs and one CJ spider.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
Hub Style	A
Type	Curved Jaw Coupling Hubs
Hub Material	Powder Metal
Style	Bored
Color	Metallic
Bore Type	Solid
Coupling Type	Jaw
Weight	0.42 lb
Dimensional Data
Bore Size	14.00 mm
Coupling Size	19
Set Screw Style Coupling Size (Dimension T)	10-24
Set Screw Style Coupling Location Size (Dimension SL)	0.390 in 9.91 mm
Keyway Size	5 x 2.3 mm
Length thru Bore (Dimensions LTB1/LTB2)	0.980 in 24.89 mm
Outside Diameter	1.570 in 39.88 mm
Overall Coupling Length	2.600 in 66.04 mm
Spider Outside Diameter	1.570 in 40.00 mm
Spider Inside Diameter	0.710 in 18.00 mm
Spider Thickness (Dimension W)	0.470 in 12.00 mm
Max. Bore (Dimensions ID1/ID2)	0.750 in 19.00 mm
Dimension G	0.630 in 16.00 mm
Dimension HD	1.260 in 32.00 mm
Dimension U	0.790 in 20.07 mm
Distance between Spider and Hub Face (Dimension CL)	0.080 in 2.03 mm
Cubic inches	1.55585 in3
Performance Data
Normal Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-40 to 212 °F
Max. Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-50 to 248 °F
Nominal Torque (with 92 Shore A spider)	88.00 in-lb 10.00 N-m
Max Torque (with 92 Shore A spider)	177.00 in-lb 20.00 N-m
Max. Speed	14000.00 rpm
Angular Displacement	0.030 in
Max. Angular Displacement (Ka), n=1500 [1/min]	1.20 °
Max. Axial Displacement (Ka)	0.0470 in
Max. Radial Displacement (Kr)	0.0080 in

Notes
