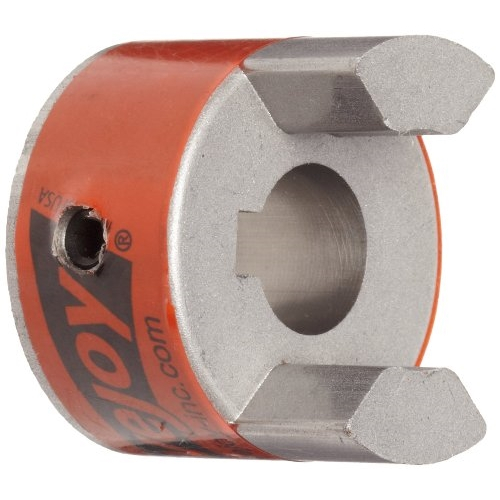

Order 68514476496 by Lovejoy L Type L110 Hub with Keyway - Metric Bore

info@USMegaStore.com

+1 (838) 222-2203
+1 (718) 504-5719 (Intl.)

Features:

Spider Performance:

Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	2.7 lb
Weight (Complete Coupling w/ Min. Bore)	5.30 lb
Weight (Complete Coupling w/ Max. Bore)	6.60 lb
Bore Size	37.50 mm
Coupling Size	L110
Keyway Size (W x D)	10 x 4 mm
Length thru Bore	1.68 in (42.67 mm)
Outside Diameter	3.32 in (84.33 mm)
Overall Length	4.22 in (107.19 mm)
Min. Bore (Dimensions ID1/ID2)	0.625 in (16.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.625 in (42 mm)
Hub Length	2.56 in (65.02 mm)
Dimension G	0.88 in (22.35 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	28.21734 in³
Nominal Torque	792.00 in·lb (89.5 N·m)
Max. Speed	5000 rpm
Rated HP at 100 rpm	1.26 hp
Rated HP at 1,200 rpm	15.12 hp
Rated HP at 1,800 rpm	23.00 hp
Rated HP at 3,600 rpm	45.36 hp

Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	2.7 lb
Weight (Complete Coupling w/ Min. Bore)	5.30 lb
Weight (Complete Coupling w/ Max. Bore)	6.60 lb
Bore Size	37.50 mm
Coupling Size	L110
Keyway Size (W x D)	10 x 4 mm
Length thru Bore	1.68 in (42.67 mm)
Outside Diameter	3.32 in (84.33 mm)
Overall Length	4.22 in (107.19 mm)
Min. Bore (Dimensions ID1/ID2)	0.625 in (16.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.625 in (42 mm)
Hub Length	2.56 in (65.02 mm)
Dimension G	0.88 in (22.35 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	28.21734 in³
Nominal Torque	792.00 in·lb (89.5 N·m)
Max. Speed	5000 rpm
Rated HP at 100 rpm	1.26 hp
Rated HP at 1,200 rpm	15.12 hp
Rated HP at 1,800 rpm	23.00 hp
Rated HP at 3,600 rpm	45.36 hp

Note: Please read description carefully. Do not base your order on the picture presented.
