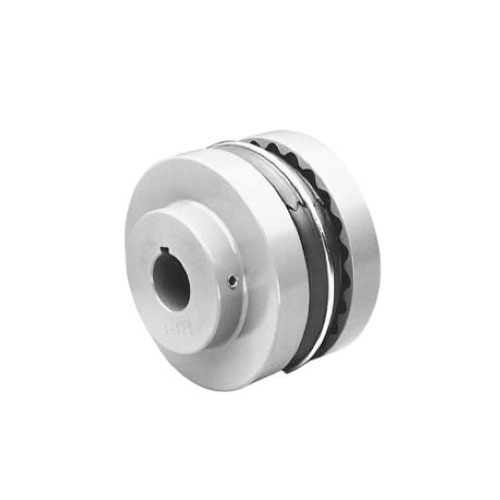

Order 68514476593 by Lovejoy S Type 9S Flange with Keyway - Inch Bore

info@USMegaStore.com

+1 (838) 222-2203
+1 (718) 504-5719 (Intl.)

Features:

S flanges are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts.
The S Type coupling consists of two flanges and one sleeve.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
Coupling Size	9S
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Bore Type	Finished Bore
Coupling Type	S-Flex
Weight	5.76 lb
Dimensional Data
Bore Size	64.00 mm
Thread (Dimension T)	1/2-13
Keyway Size (W x D)	18 x 4,4 mm
Outside Diameter	6.350 in (161.29 mm)
Max. Bore (Dimension ID)	2.375 in
Dimension FL	1.030 in (26.16 mm)
Dimension HD	3.630 in (92.20 mm)
Dimension L	2.410 in (61.21 mm)
Dimension P	0.780 in (19.81 mm)
Dimension SL	0.410 in (10.41 mm)
Cubic inches	97.17723 in3
Performance Data
Nominal Torque (with EPDM Sleeve)	1800 in-lb (203.37 N-m)
Max. Speed	3750.00 rpm
Torsional Stiffness	6875.00 in-lb/rad
Rated HP at 100 rpm	2.90 hp
Rated HP at 1,200 rpm	34.00 hp
Rated HP at 1,800 rpm	51.00 hp
Rated HP at 3,600 rpm	103.00 hp

General
Coupling Size	9S
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Bore Type	Finished Bore
Coupling Type	S-Flex
Weight	5.76 lb
Dimensional Data
Bore Size	64.00 mm
Thread (Dimension T)	1/2-13
Keyway Size (W x D)	18 x 4,4 mm
Outside Diameter	6.350 in (161.29 mm)
Max. Bore (Dimension ID)	2.375 in
Dimension FL	1.030 in (26.16 mm)
Dimension HD	3.630 in (92.20 mm)
Dimension L	2.410 in (61.21 mm)
Dimension P	0.780 in (19.81 mm)
Dimension SL	0.410 in (10.41 mm)
Cubic inches	97.17723 in3
Performance Data
Nominal Torque (with EPDM Sleeve)	1800 in-lb (203.37 N-m)
Max. Speed	3750.00 rpm
Torsional Stiffness	6875.00 in-lb/rad
Rated HP at 100 rpm	2.90 hp
Rated HP at 1,200 rpm	34.00 hp
Rated HP at 1,800 rpm	51.00 hp
Rated HP at 3,600 rpm	103.00 hp

Note: Please read description carefully. Do not base your order on the picture presented.
