Options and Related Products

Bore Size:: Bore Size: 1-1/4 x 1-1/4 in

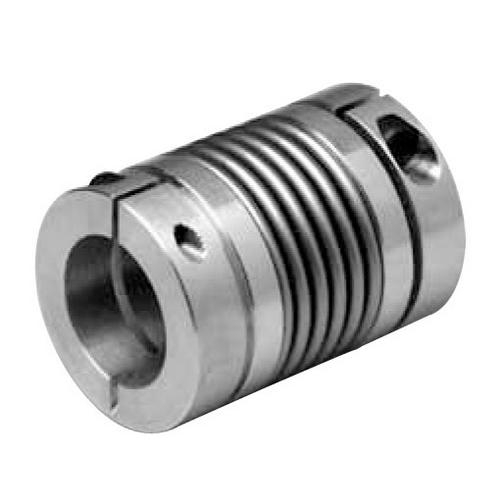

Lovejoy, 68514476972, BWLC Series - Bellow Clamp Style Coupling - Inch (Imperial) Bore

The BWLC (Bellows Clamp) Series coupling specifically addresses higher torque and bore capacities in the area of motion control. The BWLC Series offers the highest amount of torsional stiffness for accuracy and repeatability. The BWLC Series coupling features a corrosion resistant steel bellow and aluminum or steel hubs.

Features:

Highest torsional stiffness
Low reactionary loading
No maintenance required
Low inertia

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Coupling Size	BWLC78
Type	Bellows Coupling
Bellows Material	Stainless Steel
Hub Material	Aluminum
Style	Clamp
Application	Motion Control
Weight	1.32 oz
Weight (Complete Coupling w/ Min. Bores)	21.16 oz
Bore A	1.250 in
Bore B	1.250 in

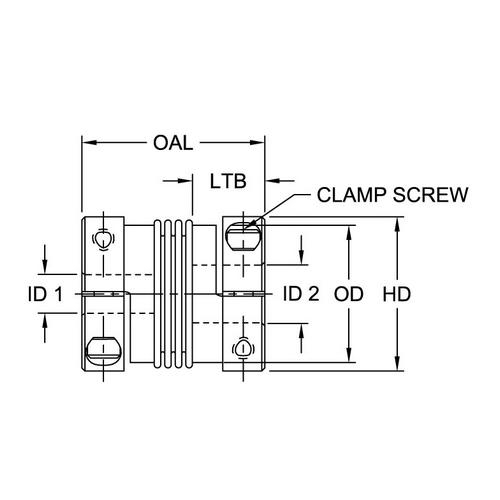

Overall Length	3.071 in (78 mm)
Keyway Size	No Keyway
Outside Diameter	2.598 in (66.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.551 in (14.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.378 in (35.00 mm)
Length thru Bore	0.768 in (19.50 mm)
Clamp Screw Size	M8
Cubic in ches	20.72803 in3
Max. Operating Temperature	212.00 °F
Max. Speed	8600.00 rpm
Nominal Torque	531.00 in-lb
Angular Misalignment	1 °
Axial Misalignment	0.0160 in
Parallel Misalignment	0.004 in
Moment of in ertia	1.7090 lb-in2
Torsional Stiffness	646050.00 in-lb /rad

Product Details

Coupling Size	BWLC78
Type	Bellows Coupling
Bellows Material	Stainless Steel
Hub Material	Aluminum
Style	Clamp
Application	Motion Control
Weight	1.32 oz
Weight (Complete Coupling w/ Min. Bores)	21.16 oz
Bore A	1.250 in
Bore B	1.250 in
Overall Length	3.071 in (78 mm)
Keyway Size	No Keyway
Outside Diameter	2.598 in (66.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.551 in (14.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.378 in (35.00 mm)
Length thru Bore	0.768 in (19.50 mm)
Clamp Screw Size	M8
Cubic in ches	20.72803 in3
Max. Operating Temperature	212.00 °F
Max. Speed	8600.00 rpm
Nominal Torque	531.00 in-lb
Angular Misalignment	1 °
Axial Misalignment	0.0160 in
Parallel Misalignment	0.004 in
Moment of in ertia	1.7090 lb-in2
Torsional Stiffness	646050.00 in-lb /rad

Note

Note: Please read description carefully. Do not base your order on the picture presented.
