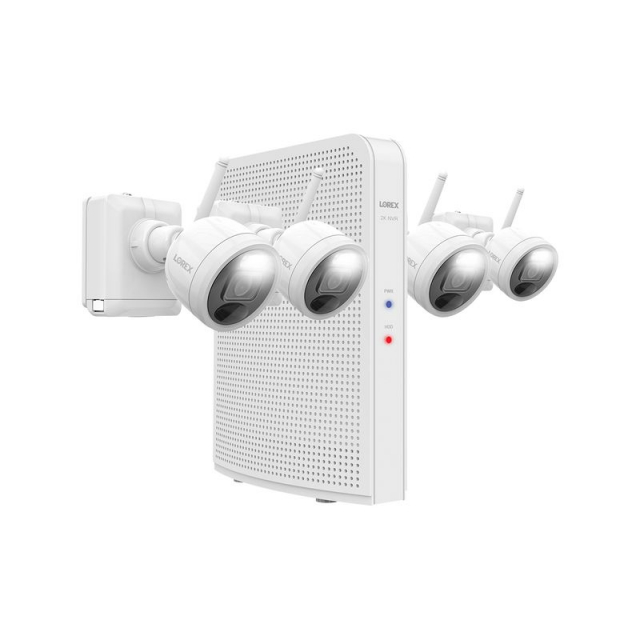

| Decoder Specification |
| Operating System | Embedded Linux |
| Channels | 6 (WiFi 802.11b/g) |
| VGA | No |
| HDMI | Yes |
| Video Output Resolutions | 3840x2160, 2560x1440,
1920x1080, 1280x720, 1280x1024 |
| Ethernet | 8P8C 10/100 Base-T |
| USB | USB 2.0 |
| Multi Screen Display | 1/4/9/SEQ |
| Frame rate | - Max 20 fps (Single Camera) at2MP/ Channel
- Max 100 fps Total at2MP/Channel
|
| On Screen Display | Yes |
| Control | Mouse |
| Update Options | Network, USB |
| Playback Functions | Play, Pause, Stop; Fast forward/ backward (2x, 4x, 8x); Slow forward (1/2x, 1/4x, 1/2x); Step forward/ backward |
| Compression | H.265+, H.265, H.264 |
| Resolution | 2560 x 1440 (4MP) |
| Event type | Motion Detection, Person Detection |
| Modes | Motion Only (default setting) / Continuous (requires HDD & continuous power from outlet to cameras) |
| Post-event | 0 min, 1/2 min, 1 min, 2 min, or 5 min |
| External Storage | MicroSD card (up to 128GB MicroSD Class 10 supproted) |
| Internal Storage | 2.5" SATA HDD (non-upgradable) |
| Backup Media | USB, HDD, Network |
| Backup File Format | MP4 / LF |
| Remote App Clients | Web, iOS, Android, iPadOS |
| Voice Assistance | Google Assistant, Amazon Alexa |
| Protocol Support | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DHCP, SMTP, DNS, DDNS |
| Housing Material | Plastic |
| Input Voltage | 12 VDC |
| Input Current | 2 A |
| Power Consumption | 3.2W (when HDD is not connected) |
| Operating Temperature | 32 °F - 104 °F / 0 °C - 40 °C |
| Operating Humidity | 20% - 85% RH |
| Weather Rating | Indoor use only |
| Package | Plain Box |
| Package Weight | 2.6lb / 1.2kg |
| Package Dimensions (W x D x H) | 11.8 x 3.9 x 9.5" / 300 x 99 x 241mm |
| Package Cube | Package Cube 0.25cbf / 0.007cbm |

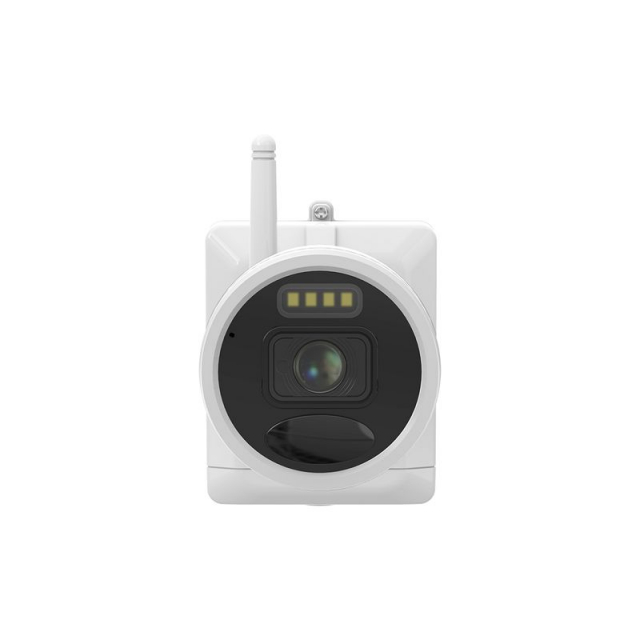

| Camera Specification |
| Imaging Device | 1/3" CMOS |
| Sensor Resolution | 4 MP |
| Resolution | 2560 x 1440 |
| Scanning System | Progressive |
| Aspect Ratio | 16:9 |
| Min. Colour Illumination | 0.05lux at F1.2(AGC ON) |
| Min. B/W Illumination | 0 lux at IR ON |
| Video Transmission | Wi-Fi |
| Lens Type | Fixed |
| Focal Length | 2.6mm |
| Aperture | f1.8 |
| Diagonal Field of View | 140° |
| Horizontal Field of View | 120° |
| Vertical Field of View | 65° |
| Person Detection | Yes |
| Microphone | Yes |
| Speaker | Yes / Siren |
| Deterrence Light | Yes |
| Two-Way Talk | Yes |
| Shutter Mode | Auto |
| Gain Contro | Auto |
| White Balance | Auto |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3DNR |
| Signal to Noise Ratio | ≤40 dB |
| IR Cut Filter | Auto |
| Night Vision Distance (max.) | 40ft / 12m |
| Transmission Distance (max., outdoors, line of sight) | 985ft / 300m |
| PIR Distance (max.) | 23ft / 7m |
| Operating Temperature | -4°F - 122 °F / -20°C - 50°C |
| Humidity | <90% RH Startup: 14°F ~ 122°F / -10°C ~ +50°C |
| Ingress Protection | IP66 |
| Color / Material | White / plastic |
| Power | max 2.92W |
| Current | max 725mA (active) / 218uA (sleep) |
| Voltage | 5 VDC |
| Package Type | Plain box |
| Package Weight | 1.4 lbs / 0.6 kg |
| Package Dimensions (W x D x H) | 8.5 x 7.5 x 3.7" / 216 x 190 x 94mm |
| Package Cube | 0.14cbf / 0.0038cbm |
