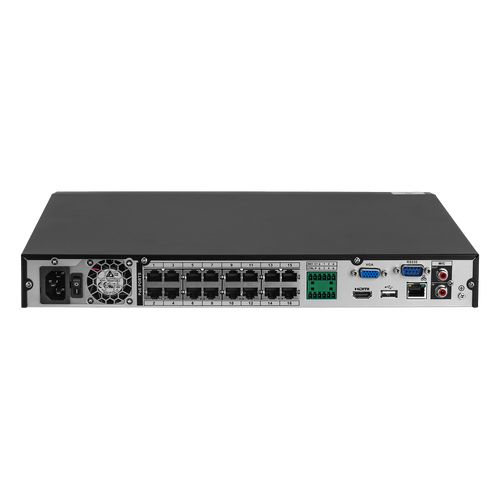

| NVR N863A63B |
| Video Transmission Technology | IP |
| Channels | 16 Channels |
| Video Input | 16 x PoE |
| Video Outputs | 1 x VGA/1 x HDMI |
| Audio Input | 1 ch: RCA type |
| Audio Output | 1 ch: RCA type |
| Alarm IN | 4 channels |
| Alarm OUT | 2 channels |
| Display Output Resolution | Up to 4K UHD, Auto Detect |
| Live Display | 1,4,8, 9,16 |
| Live Display Speed (Max) | up to 4ch 4K at15fps |
| OSD | On/Off |
| System Navigation | USB Mouse |
| Recording Resolution | 4K (8MP)/5MP/3MP/ 1080p/720p |
| Recording Frame Rate | - 4K at15fps
- 5MP at30fps
- 1080p at30fps
- 720p at30fps
|
| Recording Schedule | Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Face Detection, Alarm, Day, Hour per channel |
| Back-up File Format | DAV/ASF/AVI/MP4 |
| Video Compression | H.265/H.264 |
| Simultaneous Playback | 2ch at4K/30fps or 4ch at4K15fps |
| Playback Speed | Variable Max 8x |
| Search | By Time/Date, All Motion Events or Smart Motion (Person/Vehicle5 ), Area Search |
| Hard Drive Bays | 2 Bays |
| Hard Drive Capacity | Up to 2 x 8TB (SATA) |
| Backup Media | USB Flash Drive & USB HDD |
| Smart Motion Detection | Yes: Person & Vehicle Motion Detection |
| Face Detection Support | Yes |
| Active View Support | Yes |
| Mask Detection Support | Yes |
| Active Deterrence Support | Yes |
| Panic Button | Yes |
| Safeguard™ | Yes |
| Smart Search | Yes |
| Wired/Wireless Fusion™ supported | Yes |
| Sensor Fusion™ support | Yes |
| Selectable Siren support | Yes |
| Voice Control | Amazon Alexa™, Google Assistant™ |
| Streaming Options | Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™ |
| Mobile Viewing | Android, iOS |
| Compatible APP | Lorex Home™ |
| PC/Mac Remote Viewing | Yes/Lorex Cloud™ |
| Email Notification | Text and Snapshot |
| Network Interface | 1000 Base-TX, RJ45 |
| Network Bit Rate | 200 Mbps total |
| USB interface | USB 2.0 x 2 |
| FW Upgrade | USB/Network |
| Watchdog Function | Yes |
| Power Consumption | Approx. 13.2W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60hz, DC48V/2A |
| Total PoE Power Output | PoE: Max 25.5W for single port, 130W total |
| Unit Dimensions (W x D x H) | 14.7 x 12.9 x 2.1" / 375 x 327 x 53 mm |
| Unit Weight | 5.8 lbs / 2.6 kg (excl. HDD) |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| Humidity | 10 ~ 90% RH |
| Package | Plain Box |
| Package Weight | 11.02lb / 4.9kg |
| Package Dimensions (W x D x H) | 21.1 x 16.3 x 6.7" / 538 x 414 x 170mm |
| Package Cube | 0.06cbf / 0.001cbm |

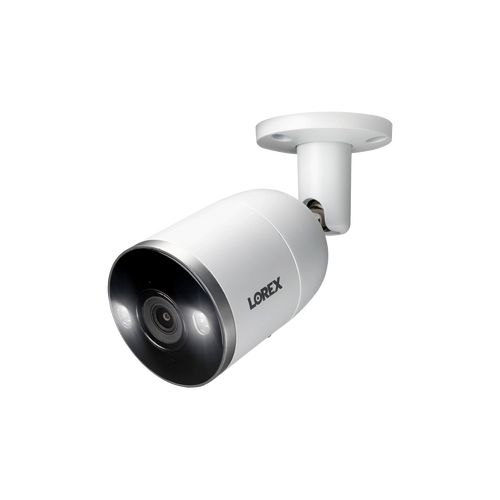

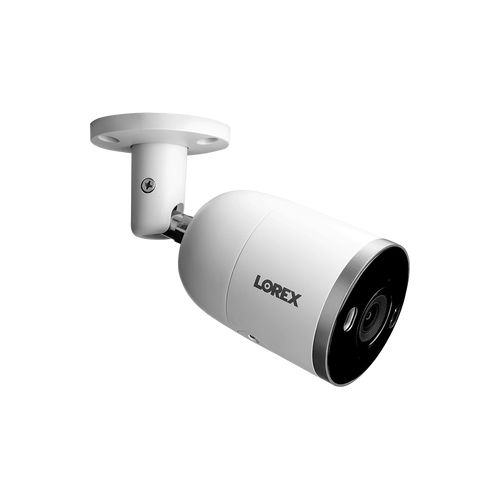

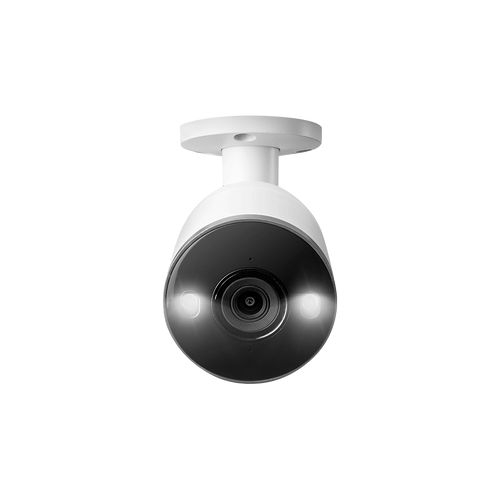

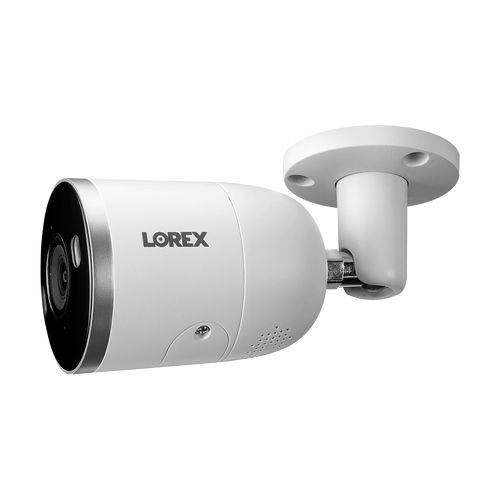

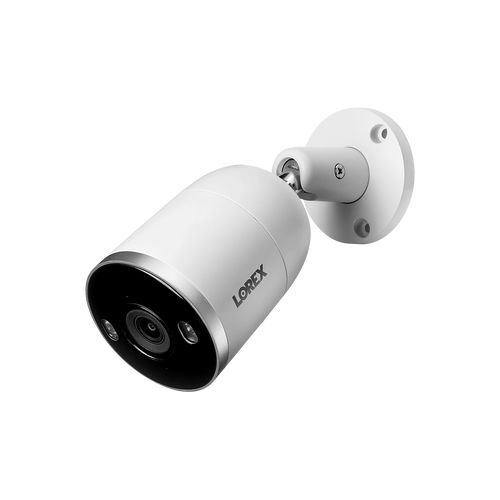

| Bullet Camera E892AB |
| Sensor | - Video Transmission Technology: IP
- Image Sensor: 8MP/4K 1/2.8" CMOS
- Video Format: NTSC
- Video Compression: H.265/H.264H (Main Stream & Sub Stream)
|
| Optical | - Viewing Angle (Horizontal): 108°
- Lens/Lens type: 2.8mm F2.0 / Fixed
|
| Video Output | - Resolution/Frame rate:
- 4K(8MP) at15fps
- 5MP at30fps
- 1080p at30fps
- 720p at30fps
- Effective Pixels: H:3840 x V:2160
- HDR: Yes
- Termination: RJ45
|
| Audio | - Microphone/Speaker: Yes/Yes
- Siren: Yes
- 2-Way Talk: Yes
|
| Night Vision | - IR Night Vision Range: 150ft (45m)/ 98ft (30m)
- Color Night Vision: Yes
|
| Special Features | - Smart Motion Detection Plus: Yes - Person and Vehicle Detection
- Face Detection: Yes
- Active View: Yes
- Safeguard: Yes - object missing or left behind
- Active Deterrence: Yes - Warning Light + Siren + 2-Way Talk
|
| Housing & Environmental | - Camera Housing Material: Aluminum Alloy
- Power Requirements: PoE (Power over Ethernet Class - 802.3af)/12V DC
- Power Consumption (max): 660mA / 9.5W
- Camera Dimensions (W x D x H): 2.9" x 7.2" x 2.9" (74mm x 184mm x 74mm)
- Camera Weight: 1.10lbs / 0.49kg
- Operating Temperature: -22°F ~ 140°F /-30°C ~ 60°C
- Humidity: < 95% RH
- Environmental Rating: IP67 (Indoor/Outdoor)
|
| Package Type | Retail Box |
| Package Weight | 3.1lb / 1.4kg |
| Package Dimensions (W x D x H) | 15.0 x 5.3 x 4.9" / 380 x 134 x 125mm |
| Package Cube | 0.014 cbf / 0.00039 cbm |
| Junction Box | Compatible with: ACJNCD3B (not included) |
