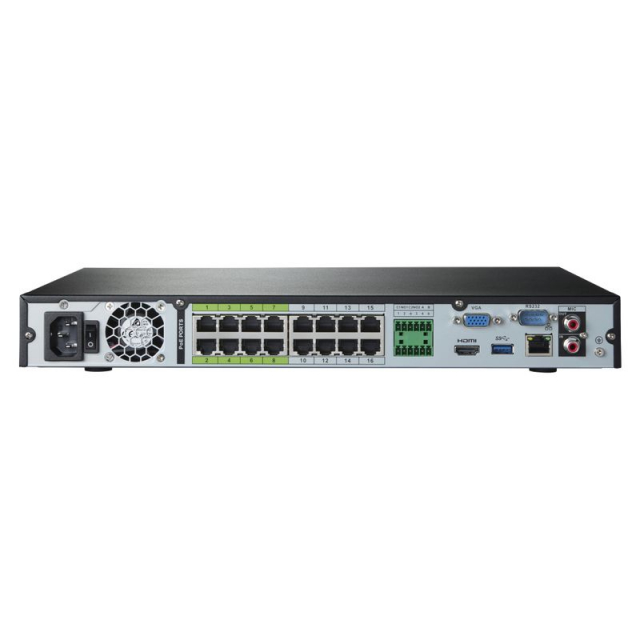

| Network Video Recorder NVR N882A38B |
| Video Transmission Technology | IP |
| Channels | 16 |
| Video Input | 16 x PoE |
| Video Outputs | 1 x VGA/1 x HDMI |
| Audio Input | 1 x RCA |
| Audio Output | 1 x RCA |
| Alarm In | 4 channels |
| Alarm Out | 2 channels |
| Display Output Resolution | up to 4K UHD, Auto Detect |
| Live Display | 1/4/8/9/16 |
| Live Display Speed (Max) | Up to 4ch 4K at30fps |
| OSD | On/Off |
| System Navigation | USB Mouse, Front Panel Buttons |
| Recording Resolution | 4K (8MP)/5MP/4MP/3MP/
1080p/720p |
| Recording Frame Rate | up to 30fps |
| Recording scheduling | Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Alarm, Day, Hour per channel |
| Back-up Media | USB, USB HDD |
| Video Compression | H.265 / H.264 |
| Simultaneous Playback | 4ch at4K 30fps |
| Playback Speed | Variable Max 16x |
| Search | By Time/Date, All Motion Events or Smart Search (Person and Vehicle), Area search |
| Hard Drive Bays | 2 Bay |
| Hard Drive Capacity | Up to 2 x 10TB (SATA) |
| Backup Media | USB Flash Drive, USB HDD |
| Storage Mirroring | Yes |
| Smart Motion Detection | Support for Person and Vehicle Detection |
| Mobile Viewing | Android, iOS |
| Compatible APP | Lorex Cloud |
| Email Notification | Text and Snapshot |
| PC/Mac Remote Viewing | Yes /Lorex Cloud |
| Network Interface | 1000 Base-TX (Gigabit), RJ45 |
| Network Bit Rate | 320Mbps total |
| USB interface | USB 2.0 x 2 |
| FW Upgrade | USB/Network |
| Watchdog Function | Yes |
| Power Consumption | Approx. 15W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60hz |
| Total PoE Power Output | 16 PoE: Max 25.5W for single port, 220W total |
| Unit Dimensions (W x D x H) | 14.7 x 12.9 x 2.1" / 375 x 327 x 53mm |
| Unit Weight | 5.8lb / 2.6kg (without HDD) |
| Operating Temperature 1 | 14° ~ 131°F / -10° ~ 55°C |
| Humidity | 10 ~ 90% RH |
| Package | Plain Box |
| Package Weight | 11.5lb / 5.2kg |
| Package Dimensions (W x D x H) | 21.1 x 16.3 x 6.7" / 536 x 414 x 170mm |
| Package Cube | 1.33cbf / 0.038cbm |

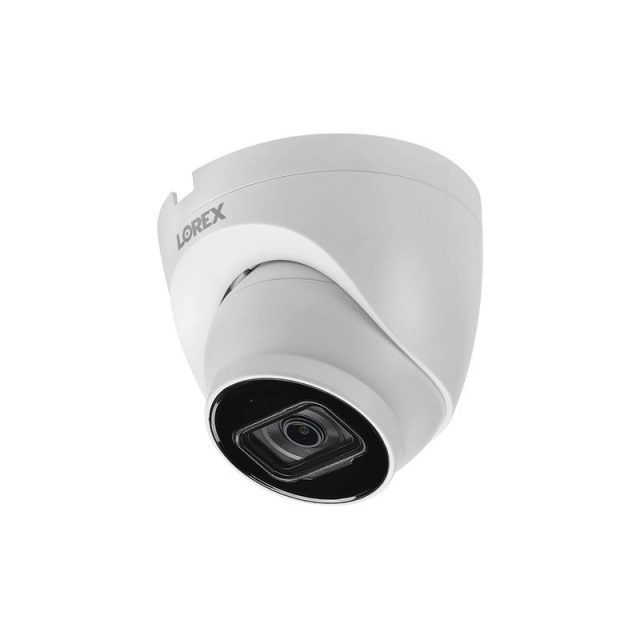

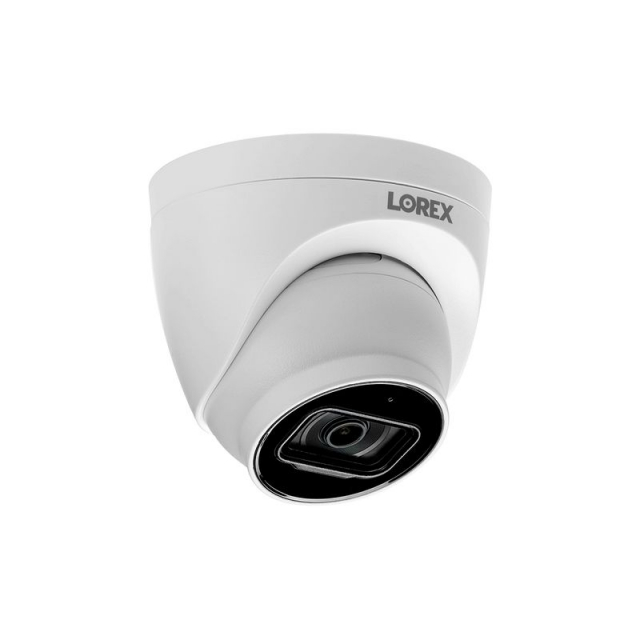

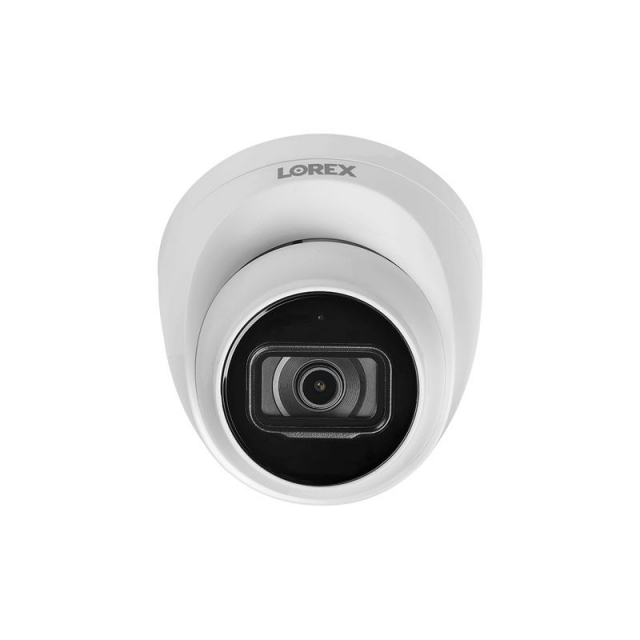

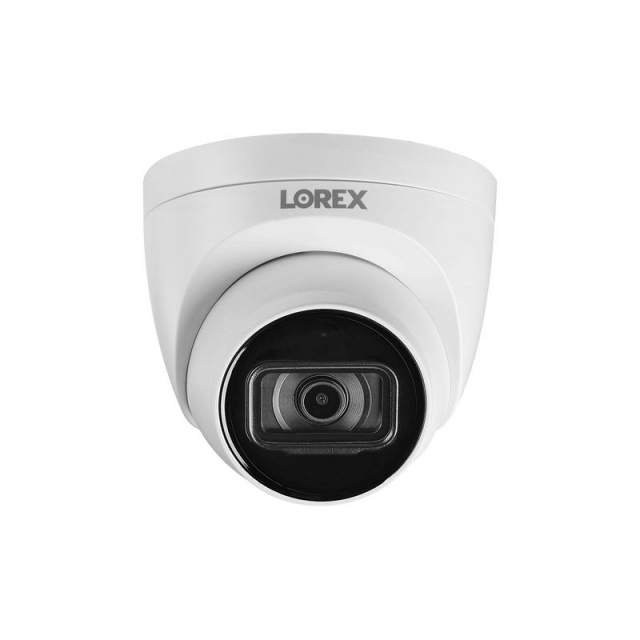

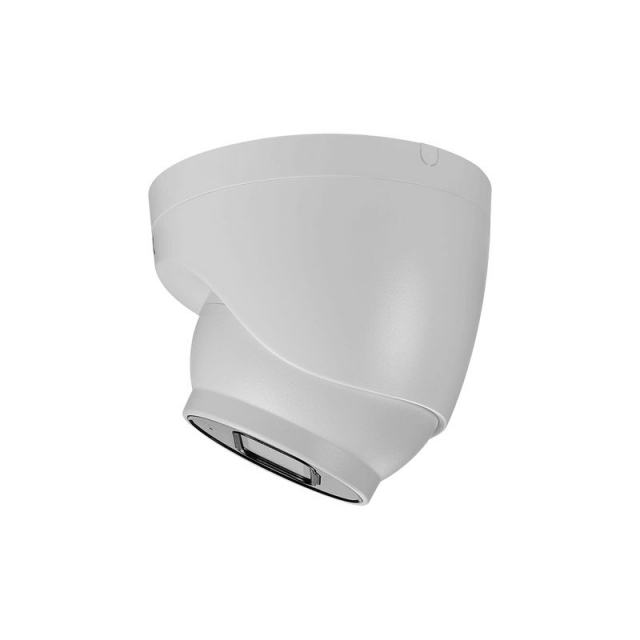

| Dome Camera E841CD-E |
| Video Transmission Technology | IP |
| Image Sensor | 8MP/4K 1/2.7" CMOS |
| Video Format | NTSC |
| Video Compression | H.265/H.264H (Main Stream & Sub Stream) |
| Viewing Angle (Horizontal) | 105° |
| Lens/Lens type | 2.8mm F2.0 / Fixed |
| Resolution/Frame rate | 4K(8MP) at 15fps, 5MP at 30fps, 1080p at 30fps, 720p at 30fps |
| Effective Pixels | H:3840 x V:2160 |
| HDR | Yes |
| Termination | RJ45 |
| Microphone/Speaker | No/Yes (Listen-in Audio) |
| Siren | No/No |
| 2-Way Talk | No |
| Night Vision Range (Ambient/Total Darkness) | 130ft (40m)/ 90ft (27m) |
| Color Night Vision | Yes |
| Body Material | Aluminum Alloy |
| Power Requirements | PoE (Power over Ethernet Class -802.3af)/12V DC |
| Power Consumption (max) | 640mA / 7.68W |
| Camera Dimensions (W x D x H) | 4.0" x 3.3" (101mm x 83mm) |
| Camera Weight | 0.79lbs/0.36kg |
| Operating Temperature | -22°F ~ 140°F / -30°C ~ 60°C |
| Humidity | < 95% RH |
| Environmental Rating | IP67 (Indoor/Outdoor) |
| Junction Box | Compatible with ACJNCD3B |
| Package Type | Retail Box |
| Package Weight | 3.3lb / 1.4kg |
| Package Dimensions (W x D x H) | 11.3 x 6.2 x 5.1" / 287 x 157 x 129mm |
| Package Cube | 0.20 cbf / 0.005cbm |

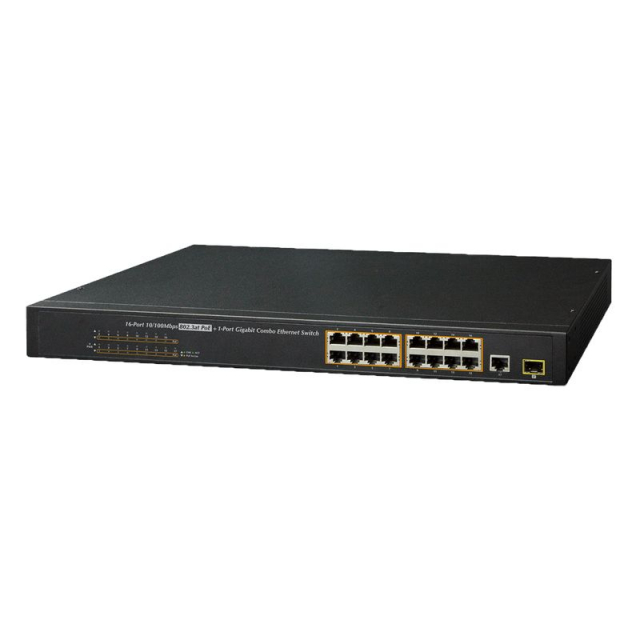

| PoE Switch ACCLPS263B |
| Ports | - 16x 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports
- 1x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port
- 1x 1000Base-X SFP interface, shared with port 17
|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Output | 30.8 watts with 51V DC output ability (maximum) |
| Total Power Output | 220 watts across ports 1~16 |
| PoE Class | Class 0/1/2/3/4 |
| Standard Compliance | - IEEE 802.3 Ethernet
- IEEE 802.3u Fast Ethernet
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3x Full-duplex flow control
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet Plus
|
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Operating Temperature | 32° ~ 122°F / 0° ~ 50°C |
| Power Input | 100~240V AC, 50/60Hz, 3.5A |
| Dimensions (W x D x H) | 17.36 x 8.20 x 1.73" / 440mm x 208 x 44mm |
| Weight | 5.8lbs / 2.6kg |
| Package Weight | 3.7kg / 8.1lbs |
| Package Dimensions: (W x D x H) | 21.8 x 11.6 x 3.4" / 553 x 294 x 86mm |
| Package Cube | 0.017cbm / 0.58cft |
| Contents | 1 x 16+1 Port PoE+ Switch, power cable |
