Lorex NC4K8-3224WD-E851 Elite Series 32 Camera Capable 8TB NVR System

Lorex, NC4K8-3224WD-E851, Elite Series 4K 32 Camera Capable 8TB Wired NVR System with 24 x 8MP (4K) A10 IP Dome Cameras

NC4K8-3224WD-E851 Includes Only:

• N884 Series - Lorex 4K Pro Series Network Video Recorder:
  • 4K NVR
  • Ethernet Cable
  • USB Mouse
  • HDMI Cable
  • Power Cord
  • 2 x 6-Pin Cable Adapter
• 24 x E851AD Series - 4K IP Wired Dome Security Cameras:
  • 4K Vandal Proof Dome Camera
  • Allen Key
  • Mounting Kit
  • Cat5 Extension Cable
• AEX16 Series - 16 Port PoE Switch:
  • PoE Switch
  • Power Cord
  • 4 x Rubber Feet
  • 2 x Rack Mount Brackets
  • 8 x Screws
  • SFP Dust Cap

Features:

• Ultra HD Resolution
• Vandal-Resistant (IK10)
• Color Night Vision
• Listen-In Audio
• IP67 Weatherproof Rating
• Built-in 4TB Storage
• Connect up to 32 cameras
• Works with the Lorex Pro mobile app

In-Camera Video Analytics:

• Person Detection
• Vehicle Detection

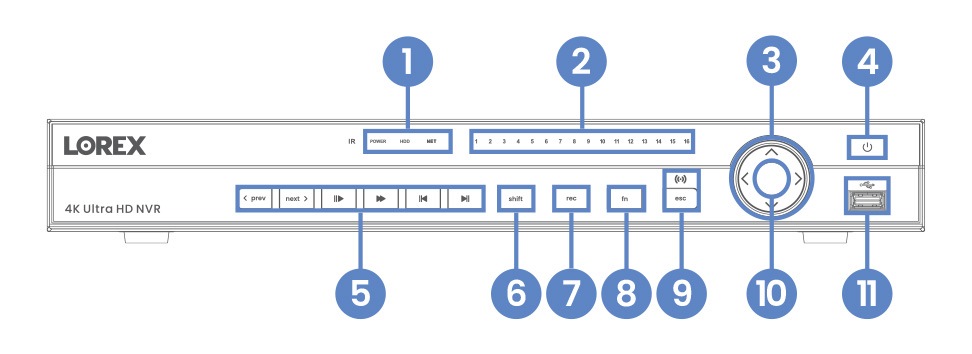

NVR Ports:

1. Power, Hard Drive & Network Statuses
2. Channel Statuses
3. Navigation Controls
4. Power Button
5. Playback Controls
6. Switch Keyboards (shift)
7. Start/Stop Recording (rec)
8. Special Functions (fn)
9. Back/Cancel (esc)
10. Info Button
11. USB Port

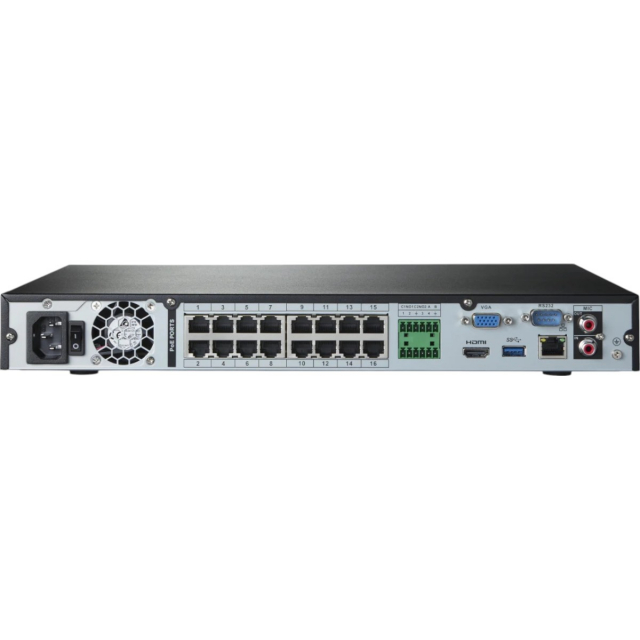

12. N884 Back Overview
13. Power Connection
14. Power Switch
15. Camera Connection (PoE)
16. RS485 Alarm
17. Monitor Connection (VGA)
18. RS232
19. Audio In/Out
20. Monitor Connection (HDMI)
21. USB Port
22. Network Connection (LAN)

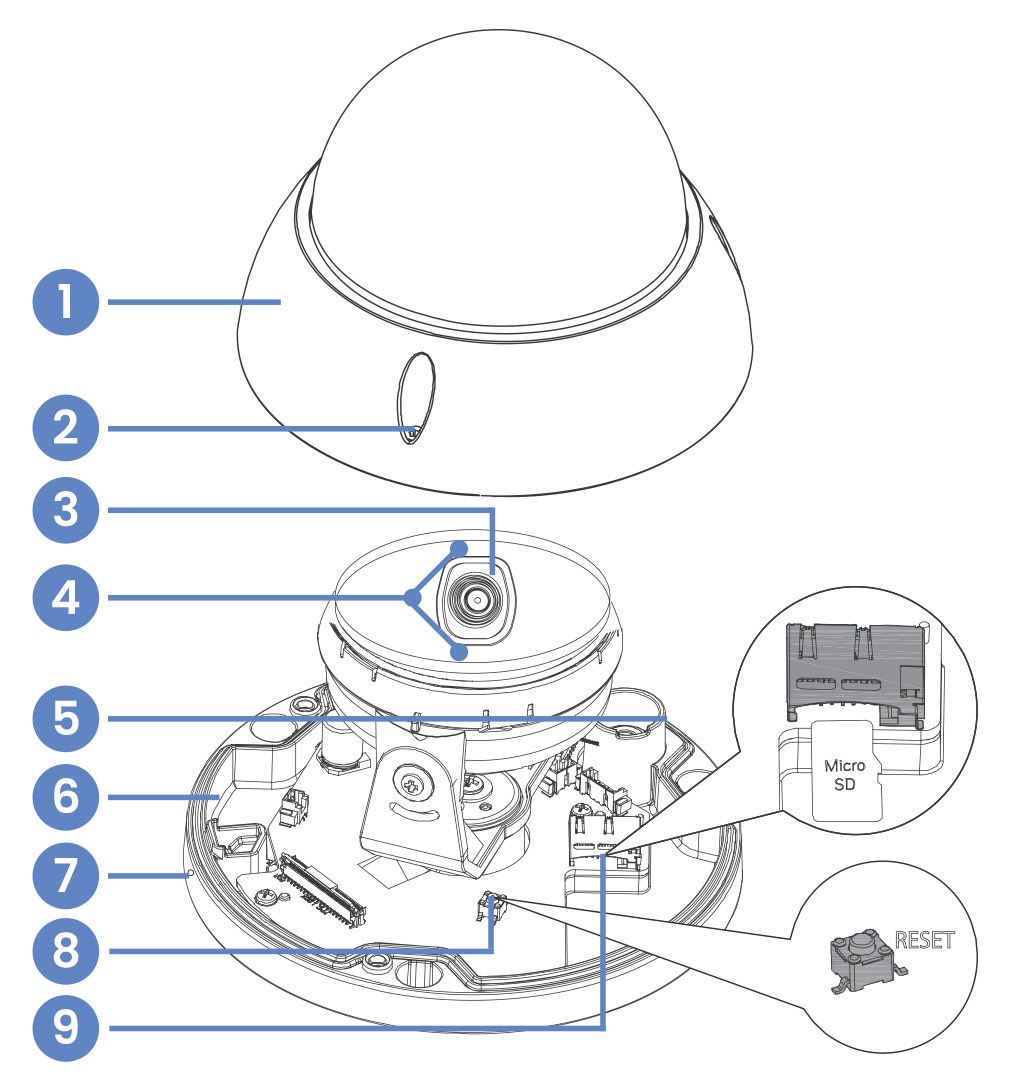

Camera Construction:

1. Dome Cover
2. Dome Cover Screw (x3)
3. Lens
4. IR (Infrared) Light (x3)
5. Cable Notch
6. Camera Base
7. Microphone
8. Reset Button
9. MicroSD Card Slot

Switch Ports:
