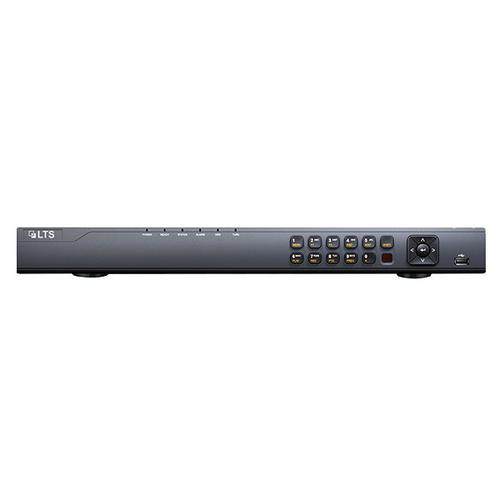

Order LTN8608-P8 by LTS Platinum 8 Channel Video Recorder 4K NVR 1U, 4 POS

info@USMegaStore.com

+1 (838) 222-2203
+1 (718) 504-5719 (Intl.)

Options and Related Products

LTS, LTN8608-P8, Platinum Professional Plus Level 8 Channel Video Recorder 4K NVR 1U, 4 POS

Features

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Video/Audio Input
IP Video Input	8-CH, Up to 12MP Resolution
Two-Way Audio Input	1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	256Mbps
Remote Connection	128
Video/Audio Output
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output	4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz, 1600 x1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA Output	1-ch, resolution: 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
CVBS Output	1-ch
Audio Output	1-CH, RCA (Linear, 1kΩ)
Decoding
Live View/ Playback Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	8-CH
Capability	2-ch at 4K, or 8-ch at1080p
Hard Disk
SATA	2 SATA Interfaces for 2 HDDs
Capacity	Up to 8TB for Each Disk
External Interface
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB Interface	Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm In/Out	4/1
PoE
Interface	8 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Max. Power	≤120W
Supported Standard	IEEE 802.3 af/at
General
Power Supply	100~240V AC
Consumption	≤15W
Working Temperature	+14ºF ~ +131 ºF(-10ºC ~ +55ºC)
Working Humidity	10% - 90%
Casing	19-Inch Rack-Mounted 1U Casing
Dimension	380 x 315x 52 mm (15" x 12.4" x 2.0")
Weight	≤8.8lb (4Kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Video/Audio Input
IP Video Input	8-CH, Up to 12MP Resolution
Two-Way Audio Input	1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	256Mbps
Remote Connection	128
Video/Audio Output
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output	4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz, 1600 x1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA Output	1-ch, resolution: 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
CVBS Output	1-ch
Audio Output	1-CH, RCA (Linear, 1kΩ)
Decoding
Live View/ Playback Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	8-CH
Capability	2-ch at 4K, or 8-ch at1080p
Hard Disk
SATA	2 SATA Interfaces for 2 HDDs
Capacity	Up to 8TB for Each Disk
External Interface
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB Interface	Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm In/Out	4/1
PoE
Interface	8 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Max. Power	≤120W
Supported Standard	IEEE 802.3 af/at
General
Power Supply	100~240V AC
Consumption	≤15W
Working Temperature	+14ºF ~ +131 ºF(-10ºC ~ +55ºC)
Working Humidity	10% - 90%
Casing	19-Inch Rack-Mounted 1U Casing
Dimension	380 x 315x 52 mm (15" x 12.4" x 2.0")
Weight	≤8.8lb (4Kg)

Note: Please read description carefully. Do not base your order on the picture presented.
