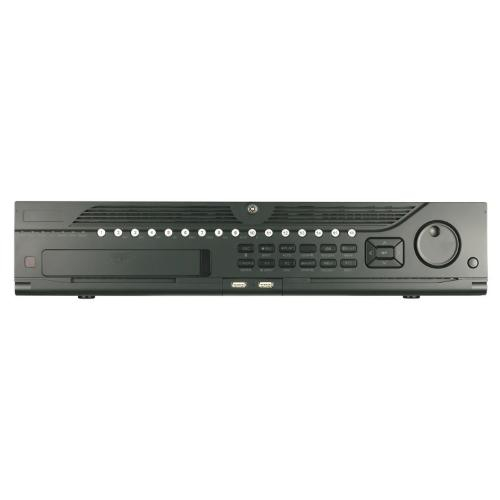

LTS, LTN8932-R, Platinum Professional Level 32 Channel 4K Network Video Recorder

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

IP Video Input	32-CH, Up to 12MP Resolution
Two-Way Audio Input	1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth	320Mbps or 200Mbps (When RAID is enabled)
Outgoing Bandwidth	256Mbps or 200Mbps (When RAID is enabled)
Remote Connection	128
Video/Audio Output
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/QCIF
VGA 1 / HDMI 1 Output	4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA 2 / HDMI 2 Output	2K(2560x1440)/60Hz, 1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio Output	2- ch, RCA (2.0Vp-p,1kΩ)
Decoding
Decoding Format	H.265/H.264/MPEG4
Synchronous Playback	16-CH
Capability	4-ch at 4K, or 16-ch at1080P
Hard Disk
SATA	8 SATA interfaces for 8HDDs
eSATA	1 eSATA interface
Capacity	Up to 8TB for Each HDD
External Interface
Serial Interface	RS-232; RS-485; Keyboard
Alarm In/Out	16/4
General
Power Supply	100~240V AC, 50 ~ 60 Hz
Consumption	≤30W
Working Temperature	+14°F ~ +131 °F(-10°C ~ +55°C)
Working Humidity	10% - 90%
Casing	19-Inch Rack-Mounted 2U Casing
Dimension	17.5" x18.5"x3.5"(445 x 470 x90 mm)
Weight	≤22lb (10Kg)

IP Video Input	32-CH, Up to 12MP Resolution
Two-Way Audio Input	1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth	320Mbps or 200Mbps (When RAID is enabled)
Outgoing Bandwidth	256Mbps or 200Mbps (When RAID is enabled)
Remote Connection	128
Video/Audio Output
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/QCIF
VGA 1 / HDMI 1 Output	4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA 2 / HDMI 2 Output	2K(2560x1440)/60Hz, 1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio Output	2- ch, RCA (2.0Vp-p,1kΩ)
Decoding
Decoding Format	H.265/H.264/MPEG4
Synchronous Playback	16-CH
Capability	4-ch at 4K, or 16-ch at1080P
Hard Disk
SATA	8 SATA interfaces for 8HDDs
eSATA	1 eSATA interface
Capacity	Up to 8TB for Each HDD
External Interface
Serial Interface	RS-232; RS-485; Keyboard
Alarm In/Out	16/4
General
Power Supply	100~240V AC, 50 ~ 60 Hz
Consumption	≤30W
Working Temperature	+14°F ~ +131 °F(-10°C ~ +55°C)
Working Humidity	10% - 90%
Casing	19-Inch Rack-Mounted 2U Casing
Dimension	17.5" x18.5"x3.5"(445 x 470 x90 mm)
Weight	≤22lb (10Kg)

Note: Please read description carefully. Do not base your order on the picture presented.
