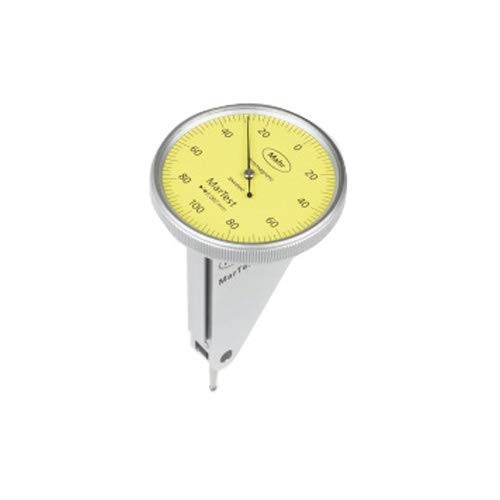

Order 4302250KAL by Mahr 800 VGM Test Indicator MarTest

info@USMegaStore.com

+1 (838) 222-2203
+1 (718) 504-5719 (Intl.)

4302250KAL Includes Only:

Application:

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Measuring range from	-0.1 mm
Measuring range up to	0.1 mm
Material Contact surface	carbide
Readings	0.002 mm
Scale diameter	38 mm
Type of dial face	100-0-100
Dial color	Yellow
Measuring force	0.25 N
Range per rev.	0.2 mm
Span of error fe ( µm)	3 µm
Total span of error fges ( µm)	4 µm
Hysteresis fu ( µm)	2 µm
Partial measuring range ft ( µm)	2 µm
Repeatability fw ( µm)	1.5 µm

Measuring range from	-0.1 mm
Measuring range up to	0.1 mm
Material Contact surface	carbide
Readings	0.002 mm
Scale diameter	38 mm
Type of dial face	100-0-100
Dial color	Yellow
Measuring force	0.25 N
Range per rev.	0.2 mm
Span of error fe ( µm)	3 µm
Total span of error fges ( µm)	4 µm
Hysteresis fu ( µm)	2 µm
Partial measuring range ft ( µm)	2 µm
Repeatability fw ( µm)	1.5 µm

Note: Please read description carefully. Do not base your order on the picture presented.
