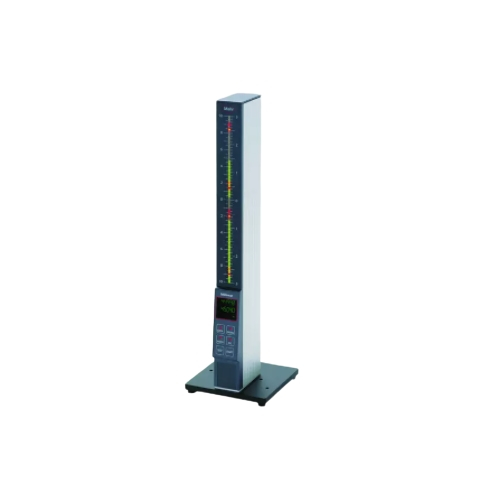

Mahr, 5318457KAL, Millimar S 1840 PE/F Compact Column Measuring Instrument

Features:

When using pneumatic compact column measuring instruments recommend using a pressure controller and supply filter (see accessories) at all times
Clear, three-color analog light bar display of warning and tolerance limits
Backlit, two-line LCD for displaying measuring values, help texts and units of measurement
1-channel
RS-232 interface
Analog output
3 digital inputs for measurement start, master measurement, etc.
3 digital outputs for good, reject, rework classification, measuring time, etc.
Dynamic measurements: Max, Min, Max-Min, Max+Min, Average
The Millimar S1840 column measuring instrument can either be programmed via the integrated membrane keypad using the menu-driven interface or via the configuration software for MS Windows
1-point or 2-point master measurement
Password block in setup mode

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Product type	S 1840 PE/F
Display	101 LED elements, 3 color
Scale reading	± 10, 30, 100, 300, 1000, 3000, 10000 μm
Range and text display	7 digit LCD, 14 segments, alphanumeric
Digital display	7 digit LCD, 7 segments
Range of analog display inches	± .0001'' , ± .0003" , ± .001'' , ± .003'' , ± .01'' , ± .03'' , ± .1'' , ± .3'' , tolerance related
Tolerance display	Via color change of the analog display
Compatibility	Federal
Measuring combination	+A, -A
Features	1
Programs	1
Test steps	1
Dynamic functions	Max, Min, Max-Min, (Max+Min)/2, Average
Configuration	PC, keyboard
Zero setter	electrical
Error limit	0.5 - 1%
Error limit, digital display	+/- 1 place
Error limit, analog display	1% (101 LEDs)
Data interface	RS-232C , wireless
Hardware interfaces	RS-232C , I/O interface
Control inputs	3 optocoupler inputs, 24 V, 10 mA
Control outputs	3 optocoupler outputs, 24 V, 100 mA
Analog output	1 V/mm
Energy supply	Power source , 230 V/115 V; 50/60 Hz
Power consumption	20 VA
IP protection category	IP 43
Relative humidity non-condensing	80 %
Operating temperature Min	0 °C
Operating temperature Max	45 °C
Temperature coefficient	0.005 µm/°C
Product weight	1.6 kg

Product type	S 1840 PE/F
Display	101 LED elements, 3 color
Scale reading	± 10, 30, 100, 300, 1000, 3000, 10000 μm
Range and text display	7 digit LCD, 14 segments, alphanumeric
Digital display	7 digit LCD, 7 segments
Range of analog display inches	± .0001'' , ± .0003" , ± .001'' , ± .003'' , ± .01'' , ± .03'' , ± .1'' , ± .3'' , tolerance related
Tolerance display	Via color change of the analog display
Compatibility	Federal
Measuring combination	+A, -A
Features	1
Programs	1
Test steps	1
Dynamic functions	Max, Min, Max-Min, (Max+Min)/2, Average
Configuration	PC, keyboard
Zero setter	electrical
Error limit	0.5 - 1%
Error limit, digital display	+/- 1 place
Error limit, analog display	1% (101 LEDs)
Data interface	RS-232C , wireless
Hardware interfaces	RS-232C , I/O interface
Control inputs	3 optocoupler inputs, 24 V, 10 mA
Control outputs	3 optocoupler outputs, 24 V, 100 mA
Analog output	1 V/mm
Energy supply	Power source , 230 V/115 V; 50/60 Hz
Power consumption	20 VA
IP protection category	IP 43
Relative humidity non-condensing	80 %
Operating temperature Min	0 °C
Operating temperature Max	45 °C
Temperature coefficient	0.005 µm/°C
Product weight	1.6 kg

Note: Please read description carefully. Do not base your order on the picture presented.
