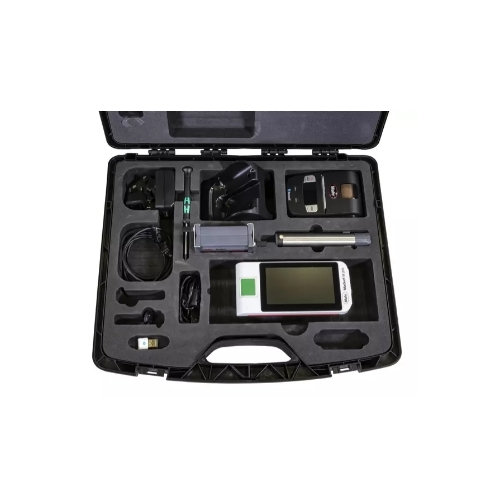

Mahr 6910267 MarSurf M 310 mit Drucker Mobile Roughness Instrument

Mahr, 6910267, MarSurf M 310 mit Drucker Mobile Roughness Measuring Instrument

Features with all optional accessories:

• Simple and intuitive to use: as easy as using a smartphone
• Large, illuminated 4.3" TFT touch display
• Specification of the cutting line C in μm or in % of Rz for the characteristic values Rmr and tp
• Removable drive unit
• 31 thread parameters
• Work without errors, thanks to integrated, removable roughness standard
• Automatic cutoff selection, so even non-specialists can be sure of getting the correct measuring results
• Micro USB interface for remote control via ASCII commands, e.g. via software for statistical process control
• USB-A interface - for connection e.g. of a USB Bluetooth adapter or USB/Bluetooth printer
• Transfer of measurement protocols and data optionally via Bluetooth or cable
• IATF 16949 compliant - Secure traceability with MarConnect
• Print directly to the mobile printer (as an option or directly in the set with printer)
• Data backup as TXT, X3P, CSV and PDF file
• Creation of finished PDF protocols directly in the measuring device
• Custom comments for the PDF protocol are entered directly on the MarSurf M 310
• Display and print MRK and ADK curve
• Save over 1000 measuring programs (Quick & Easy)

Applications:

• For shafts and housing components
• For large machines
• For large workpieces
• For milled and turned parts
• For ground and honed workpieces
• On the production line or directly on the machine, ideal for rapid testing of the surface roughness of a workpiece in or on the machine.
