Mark-10 MR04-100 Series R04 Plug & Test Inline Tension/Force Sensor, 100 lbF

  • Brand Mark-10
  • Part # MR04-100
  • Model # Series R04
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

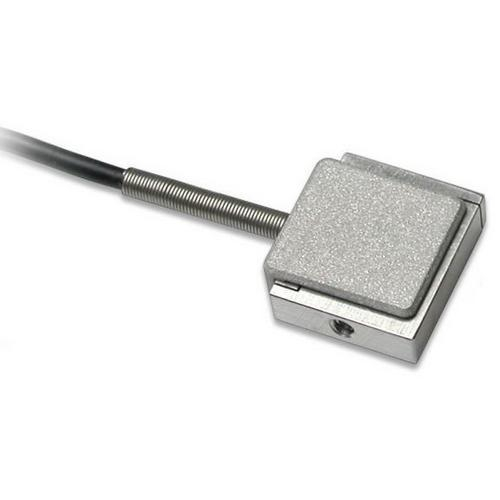

Mark-10, MR04-100, Series R04 Plug & Test Inline Miniature Tension /Compression Force Sensor, 100 lbF

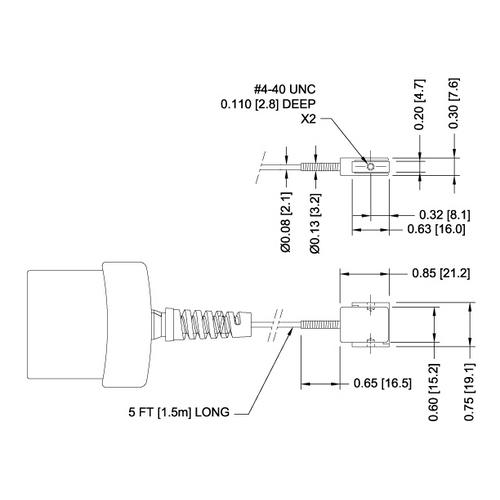

Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. Every capacity has the same miniature dimensions. The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements. Compatible with Mark-10 indicators (sold separately) through unique Plug & TestTM technology.

Includes:

  • NIST-traceable certificate of calibration with data

Features:

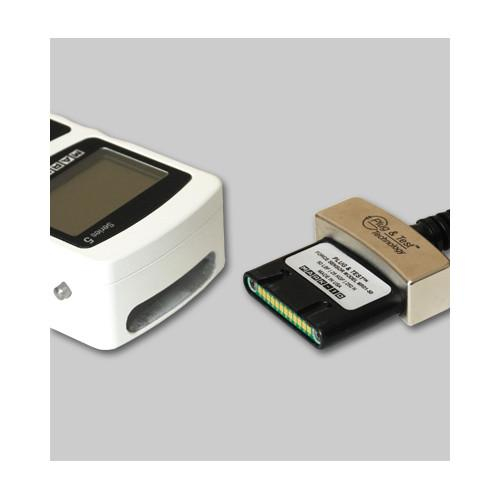

  • Member of the Plug & Test™ family of interchangeable sensors and indicators

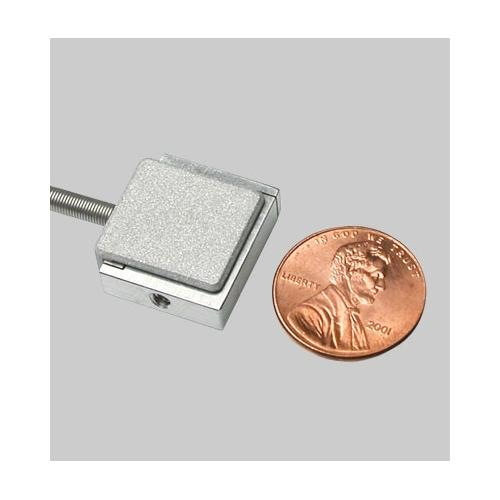

  • Ultra-compact size

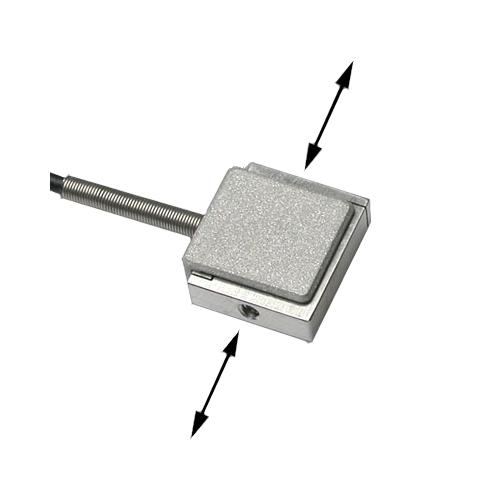

  • Measures tensile and compressive forces
  • Accuracy: ± 0.2% of full scale + indicator
  • Weight: 0.015 lb (0.007 kg)
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Capacity x Resolution with Models 7i & 5i Indicators100 x 0.05 IbF / 1600 x 1 ozF / 50000 x 20 gF / 50 x 0.02 kgF / 500 x 0.2 N
Capacity x Resolution with Model 3i Indicator100 x 0.1 IbF / 50 x 0.05 kgF / 500 x 0.5 N
Accuracy±0.2% of full scale
Safe overload200% of full scale
Operating temperature40°F - 100°F [5°C - 38°C]
Operating humidity96% max. (non-condensing)
Weight0.015 lb [0.007 kg]
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Capacity x Resolution with Models 7i & 5i Indicators100 x 0.05 IbF / 1600 x 1 ozF / 50000 x 20 gF / 50 x 0.02 kgF / 500 x 0.2 N
Capacity x Resolution with Model 3i Indicator100 x 0.1 IbF / 50 x 0.05 kgF / 500 x 0.5 N
Accuracy±0.2% of full scale
Safe overload200% of full scale
Operating temperature40°F - 100°F [5°C - 38°C]
Operating humidity96% max. (non-condensing)
Weight0.015 lb [0.007 kg]
Note

Note: Please read description carefully. Do not base your order on the picture presented.
