TSC1000H, Horizontal / Wall mount Hand Wheel-Operated Test Stand, 1000 lb / 5 kN

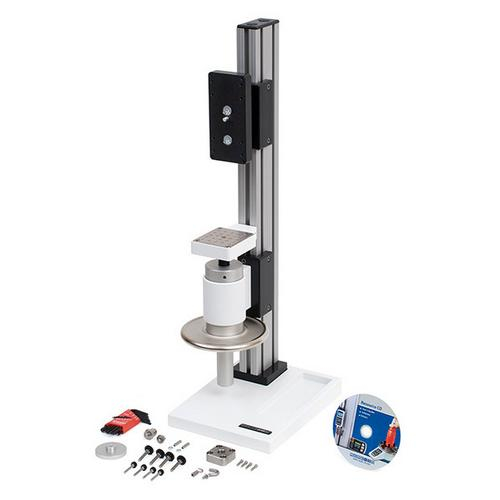

The TSC1000 Force Measurement Test Stand is ruggedly built for testing up to 1,000 lbF (5 kN) of compression or tension force.
A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting.
Includes:
- Tool kit
- medium hook
- large hook
- 2 in dia. compression plate
- 1/2-20F mounting plate
- force gauge mounting hardware
Features:
- Maximum force: 1,000 lbF [5 kN]
- Maximum travel: 3.5" [89 mm]
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting

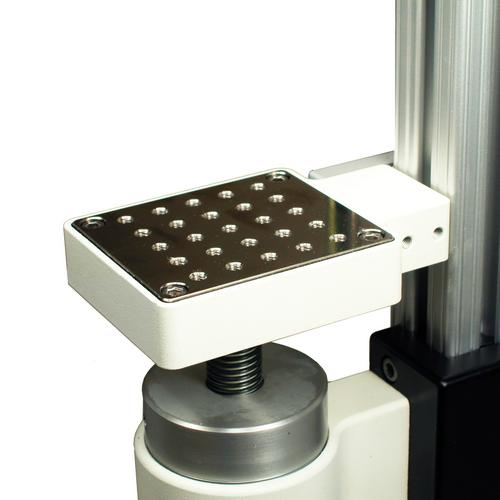

- Loading table with 25 #10-32 UNF holes for fixture mounting
- Precision Acme screw and nut
