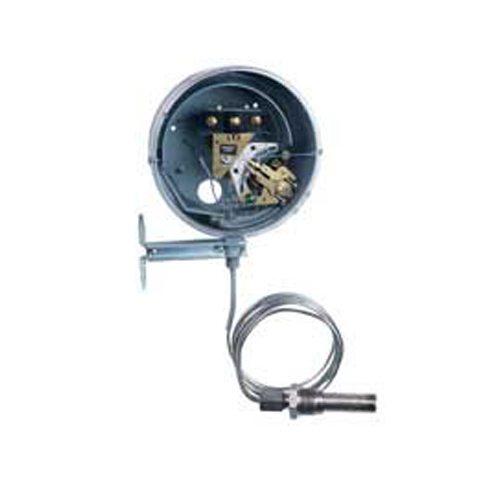

Mercoid DA-36-153-5NS Series DA-7035N Temperature Switch

Range: 100-200 F, Circuit: 9-64, SPDT
  • Brand Mercoid
  • Part # DA-36-153-5NS
  • Model # Series DA-7035N
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Range:
Range: 100-200 F
Circuit:
Circuit: 9-64, SPDT

Mercoid, DA-36-153-5NS, Series DA-7035N Temperature Switch, 9-64, SPDT, 100-200 F

Series DA-7035N Temperature Switch, Mercury Switch Tilt Type, Single Stage Temperature Control with Stem, 9-64, SPDT, 100-200 °F

Series DA-7035N Temperature Switches include the same time-proven switching mechanism used in our Series DA Pressure Switches. Bourdon tube assures high sensitivity and long life. Fully adjustable deadband makes units suitable for a wide range of control applications. Visible, calibrated dial and external adjustments make changing set points simple and fast.

Features

  • Adjustable deadband
  • Snap action switch standard
  • Inert gas activated Bourdon tube
  • No cross ambient temperature effects
  • No bulb elevation correction required
  • Visible dial calibrated in both °F and °C
  • Visible on/off indication
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
ServiceCompatible liquids or gases
Wetted MaterialsBulb and connection: 304 SS
Temperature LimitAmbient: 180°F (82°C)
Pressure Limit300 psi (20.6 bar)
Enclosure RatingGeneral purpose
Repeatability±1% of full scale
Switch TypeSPDT snap switch
Electrical Rating10A @ 120/240/480 VAC
Electrical ConnectionsScrew terminal
Conduit Connection7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub
Process Connection3/4" male NPT
Mounting OrientationVertical and level
Set Point AdjustmentExternal knobs for set point and reset point
Weight5 lb (2.3 kg)
DeadbandAdjustable from minimum in model chart to full range
Capillary6 ft (1.8 m) standard
Set Point ScaleIndication in °F and °C
Notes

***

Based on applicable laws mercury-containing products are known to be restricted for sale and use in some states and destinations.

Mercury-Free States (MFS) - Connecticut, Louisiana, Maine, Massachusetts, Michigan, Minnesota, New Hampshire, New Jersey, North Carolina, Rhode Island, Vermont, Washington

Restricted Sales States (RSS) - California, Illinois, New York

Also, shipments of mercury-containing products are not available to Non-Contiguous States (NCS) and territories - Alaska, Hawaii, Puerto Rico, and US Territories.

Shipments to international destinations, except Canada and Mexico, are forbidden.

Product Details
ServiceCompatible liquids or gases
Wetted MaterialsBulb and connection: 304 SS
Temperature LimitAmbient: 180°F (82°C)
Pressure Limit300 psi (20.6 bar)
Enclosure RatingGeneral purpose
Repeatability±1% of full scale
Switch TypeSPDT snap switch
Electrical Rating10A @ 120/240/480 VAC
Electrical ConnectionsScrew terminal
Conduit Connection7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub
Process Connection3/4" male NPT
Mounting OrientationVertical and level
Set Point AdjustmentExternal knobs for set point and reset point
Weight5 lb (2.3 kg)
DeadbandAdjustable from minimum in model chart to full range
Capillary6 ft (1.8 m) standard
Set Point ScaleIndication in °F and °C
Note

Note: Please read description carefully. Do not base your order on the picture presented.
