Power:: Power: 150-200W

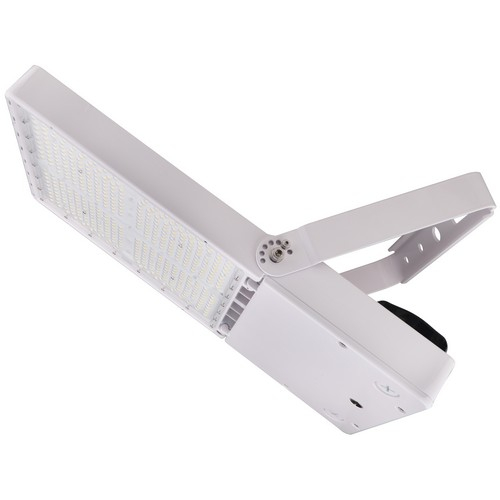

Morris, 74053C, LED Area Light Shoebox Generation 4, 150-200W, 120-277V, 5000K Color Temperature

Features:

SMD 3030 LEDs
Corrosion resistant Die Cast Aluminum housing
Polycarbonate Optic Lens
Superior Architectural Powder Coat Finish
Stainless Steel Hardware
Photo Control must be Purchased Separately
Light Pattern: Type V
IP65 (NEMA 4X) Dust & Water Tight
cULus Listed for Wet Locations

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Electrical

Input Voltage: 120-277V
Current: 0.77A at 277V
Frequency: 60Hz
Power Factor: ≥.0.9
THD: 15.1% at 277V

Product Parameters

150/200 Watts
Efficacy: 134 Lumens Per Watt
50,000+ LED Life Span
CCT: 5000K

Chromacity Measurements

Beam Angle: 125°
CRI: 74
R9: -29
DUV: 0.002
Chromaticity (x,y): x=0.3327 y=0.3452
Chromaticity (u,v): u=0.2055 v=0.4797

Component Specifications

LED: SMD3030
Driver Voltage: 120-277V
Frequency: 50-60Hz

Dimming

0-10V

Operating Temperature

Minimum Starting -22°F - 122°F

Construction

Housing: Corrosion resistant Die Cast Aluminum housing
IP Rating: IP65 Wet Location Rated
Lens Material: Polycarbonate
Mounting Accessories Sold Separately
Listings: cULus

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Electrical

Input Voltage: 120-277V
Current: 0.77A at 277V
Frequency: 60Hz
Power Factor: ≥.0.9
THD: 15.1% at 277V

Product Parameters

150/200 Watts
Efficacy: 134 Lumens Per Watt
50,000+ LED Life Span
CCT: 5000K

Chromacity Measurements

Beam Angle: 125°
CRI: 74
R9: -29
DUV: 0.002
Chromaticity (x,y): x=0.3327 y=0.3452
Chromaticity (u,v): u=0.2055 v=0.4797

Component Specifications

LED: SMD3030
Driver Voltage: 120-277V
Frequency: 50-60Hz

Dimming

0-10V

Operating Temperature

Minimum Starting -22°F - 122°F

Construction

Housing: Corrosion resistant Die Cast Aluminum housing
IP Rating: IP65 Wet Location Rated
Lens Material: Polycarbonate
Mounting Accessories Sold Separately
Listings: cULus
