Ohaus 80252561 4' x 4' Economical Floor Scale with NTEP Certificate

Ohaus, 80252561, 4' x 4' Economical Floor Scale with NTEP Certificate

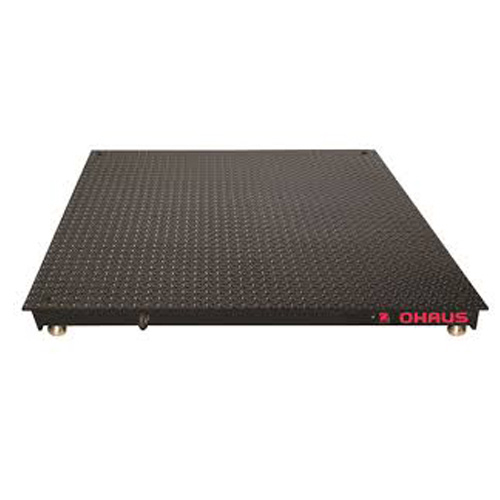

4' x 4' Standard Floor Scale

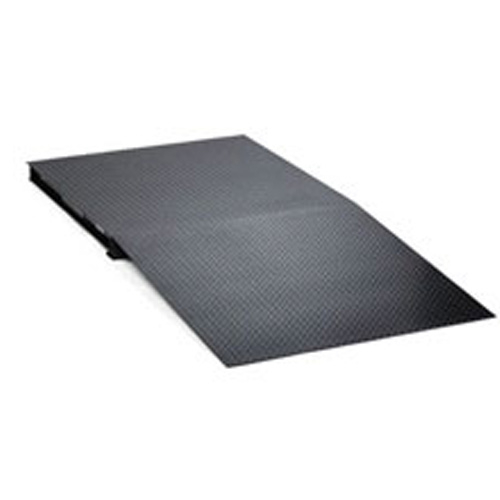

The OHAUS VN Series of floor platforms and scales are the value solution to your dry weighing needs in industrial and commercial applications. Its high-quality construction is designed to minimize distortion under heavy loads, and ensures years of dependable use. NTEP certification ensures consistent weighing performance. Available with ramps and mounting feet, the OHAUS VN Series floor platforms and scales offer a unique combination of value, quality and dependability your company can rely on.

Includes

• Wall mount bracket
• Battery or AC adapter
• Durable T31P Indicator

Features

• 5,000 lb capacity with 1 lb readability in platform size: 4' x 4'
• 5mm / 0.196” thick painted carbon steel top plate with raised cross-hatch surface for added slip resistance
• Four NTEP certified shear beam load cells protected to IP67
• Side access NEMA 4X / IP65 dust and water protected stainless steel junction box with 16.5’ long indicator cable
• Four self-swiveling ball-in-cup feet, with top-access leveling adjustment for easy installation
• Internal structural bracing ensures platform rigidity during everyday use
• Carbon steel eyebolts (included) attach to side of platform for easy lifting and positioning
• OHAUS T31P indicator included with scale featuring:
  • Backlit LCD display with high-visibility 1-inch high digits
  • lb and kg weighing units in NTEP mode - g, oz and lb:oz also available when not in NTEP mode
  • Power using included 80-hour internal rechargeable lead acid battery or included AC adapter
  • Counting mode for warehousing and inventory applications
  • Wall mount bracket included
• Durable T31P Indicator
  • Large 1” high digit backlit LCD display quickly displays results in a choice of lb or kg. The power-on unit is selectable, and either the lb or kg unit can be turned off for easier use.
  • Includes Counting Mode with a minimum Average Piece Weight of 1d, selectable sample sizes, automatic retention of last sample size used and Average Piece Weight. For installations where Counting Mode is not required, the parts counting software can be selected off.
  • Built-in bidirectional RS232C interface for printing or connection to PC. Printing intervals can be set to manual (using Print key), continuous, on stable weight, or an interval between 1 second and 60 minutes.
  • Geographical gravity correction software allows quick adjustment of calibration to local conditions without need for recalibration of the VN Floor Scale. All VN Floor Scales are factory calibrated and must be set to match local gravity situation.
  • Durable mechanical switch keypad with dedicated Print, Tare and Function keys for quick and easy operation
  • Powered using either the included AC adapter or the included 100-hour internal rechargeable battery pack.
  • Reversible back which allows installation with the floor platform and power connections exiting from the top or the bottom of the indicator housing.
  • The T31P includes four wall mounting holes for screw mounting to bench or wall - it can also be wall or table mounted using the included wall mount bracket for full tilt adjustment of the indicator.
  • Software lockouts of menu operations for setup, readout, mode, unit and print menu options. In NTEP certified operation, certain menu options are automatically locked-out.
