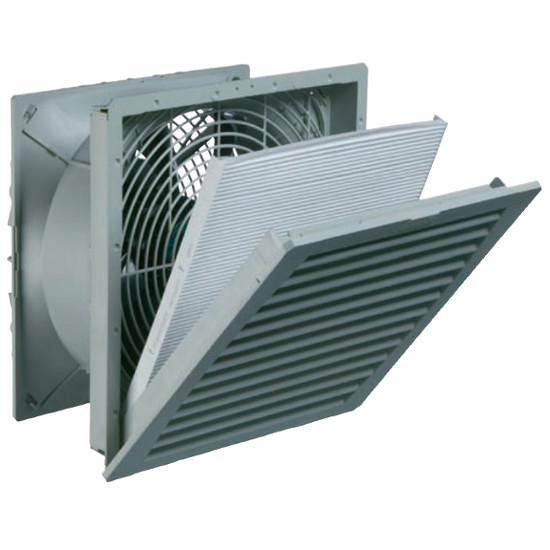

Pfannenberg, 118 6602 3055, PF 66000 460V Light Grey 4th Generation EMC/IP55 Filterfan

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type Protection	IP 55
Rated voltage ± 10 %	400 / 460 3 ~ V
Unimpeded airflow	770 / 785 m³/h
Air flow rate in combination	490 / 501 m³/h
Power consumption	120 / 160 W
Current consumption	0.53 / 0.72 A
Noise level (according to EN ISO 3741)	63 / 64 dB (A)
Type of connection	spring-type terminal
Fuse	6 A
Filtration effi ciency	91 %
Filter mat quality class	G 4
Duty cycle	100 %
Bearing type	ball bearing
Service life L10 (+ 40 °C)2	40000 h
Temperature range	-40 … +131 °F / -40 … + 55 °C
Design (housing and protection against accidental contact)	additional: UV-resistant
EMC screen	stainless steel
Color	RAL 7035

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Type Protection	IP 55
Rated voltage ± 10 %	400 / 460 3 ~ V
Unimpeded airflow	770 / 785 m³/h
Air flow rate in combination	490 / 501 m³/h
Power consumption	120 / 160 W
Current consumption	0.53 / 0.72 A
Noise level (according to EN ISO 3741)	63 / 64 dB (A)
Type of connection	spring-type terminal
Fuse	6 A
Filtration effi ciency	91 %
Filter mat quality class	G 4
Duty cycle	100 %
Bearing type	ball bearing
Service life L10 (+ 40 °C)2	40000 h
Temperature range	-40 … +131 °F / -40 … + 55 °C
Design (housing and protection against accidental contact)	additional: UV-resistant
EMC screen	stainless steel
Color	RAL 7035

Note: Please read description carefully. Do not base your order on the picture presented.
