Color:: Color: Red/Yellow/Green

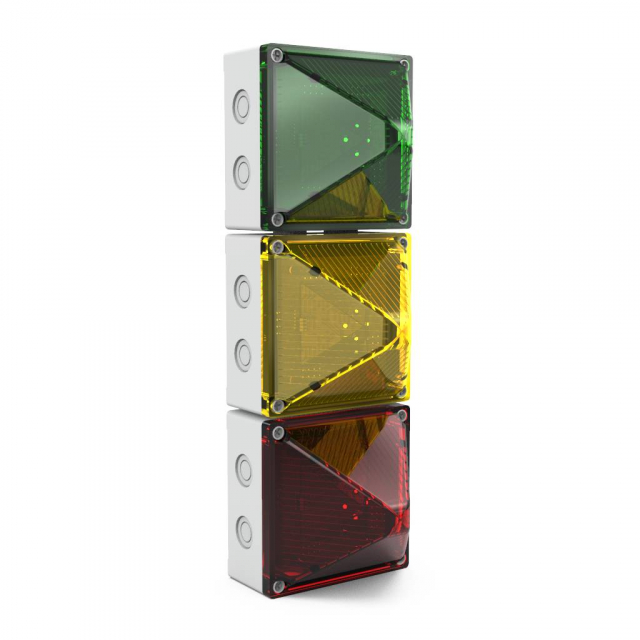

Pfannenberg, 21106630008, Quadro LED-TL Traffic Light, Red, Yellow, Green, 24V DC

Features:

Very bright LED
IP 66 enclosure rating
Impact resistant housing and lens
Mounting

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Rated voltage

24 V DC

Operating range

10 - 30 V

Nominal current consumption

1.06 A

Operating mode

LED continuous or blinking light

Light source switchable

High output LED array

Light intensity (DIN 5037)

75 cd

Max. viewing distance

207 m

Operating temperature

-30 °C to +55 °C

Storage temperature

-40 °C to +70 °C

Relative humidity

95 %

Protection system (EN 60529)

IP 66; IK08 (EN 50102), mounting arbitrary

Service life of the light source

50,000 hrs

Material

Lens: Polycarbonate (PC), UV resistant
Housing: Polycarbonate (PC), UV resistant, RAL 7035

Cable entry

M20/M32 sideways, other imprints prepared

Connecting terminal

Cage clamp 0.08-2.5 mm2 (in the red light)

Mounting

External lugs or internal holes

Weight

0.500 kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Rated voltage

24 V DC

Operating range

10 - 30 V

Nominal current consumption

1.06 A

Operating mode

LED continuous or blinking light

Light source switchable

High output LED array

Light intensity (DIN 5037)

75 cd

Max. viewing distance

207 m

Operating temperature

-30 °C to +55 °C

Storage temperature

-40 °C to +70 °C

Relative humidity

95 %

Protection system (EN 60529)

IP 66; IK08 (EN 50102), mounting arbitrary

Service life of the light source

50,000 hrs

Material

Lens: Polycarbonate (PC), UV resistant
Housing: Polycarbonate (PC), UV resistant, RAL 7035

Cable entry

M20/M32 sideways, other imprints prepared

Connecting terminal

Cage clamp 0.08-2.5 mm2 (in the red light)

Mounting

External lugs or internal holes

Weight

0.500 kg
