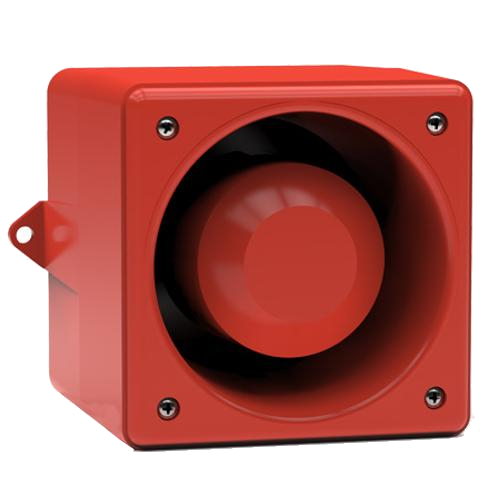

Pfannenberg, 231 1180 0601, DS10-SIL Sounder Conforming for Safety Instrumented Systems, 19 to 29 VAC

Features:

Designed to be implemented in Safety Instrumented Systems (SIS) up to SIL 2 / Performance Level PL d
31 alarm tones with 4 stages
Stage programmability
Internal volume control
Horn loudspeaker type tone generator
IP 66, IP 67 cast aluminum housing
5.2 inch (134 mm) h x 5.2 inch (134 mm) w x 5.6 inch (143 mm) d
Certifications: SIL

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Operating range	19-29 V
Nominal current consumption	420 mA
Diagnostics channel switching power	230 V / 80 mA
Diagnostics channel current consumption	20 mA
Sound pressure level	110 dB(A)
Alarm tones	32 / 4 tones are externally selectable
Operating temperature	-25 °C / +55 °C
Storage temperature	-40 °C / +70 °C
Relative humidity	90 %
Protection system according to EN 6052	IP 66 \| IP 67
Duty cycle	100 %
Material	die-cast aluminium GD-AI Si12 Cu
Surface coating	epoxy resin paint RAL 3000, flame red
Cable bushing	2x M20 (1x chrome-plated brass cable fitting, 1x chrome-plated brass blanking plug)
Clamping range of the cable fitting	8-12 mm
