Pfannenberg 23311105055 PA X 1-05 Flashing Sounder

  • Brand Pfannenberg
  • Part # 23311105055
  • Model # PA X 1-05
  • Condition
    Brand New
Buy in Bulk 4 Applicable Promotion(s)
Show All

  • Buy 5 pcs, get 4% off

    Save 4% each on Pfannenberg 23311105055 PA X 1-05 Flashing Sounder when you purchase 5 or more

  • Buy 4 pcs, get 3% off

    Save 3% each on Pfannenberg 23311105055 PA X 1-05 Flashing Sounder when you purchase 4 or more

  • Buy 3 pcs, get 2% off

    Save 2% each on Pfannenberg 23311105055 PA X 1-05 Flashing Sounder when you purchase 3 or more

  • Buy 2 pcs, get 1% off

    Save 1% each on Pfannenberg 23311105055 PA X 1-05 Flashing Sounder when you purchase 2 or more

Availability
Typically In Stock
Check Availability
Quantity
Share:

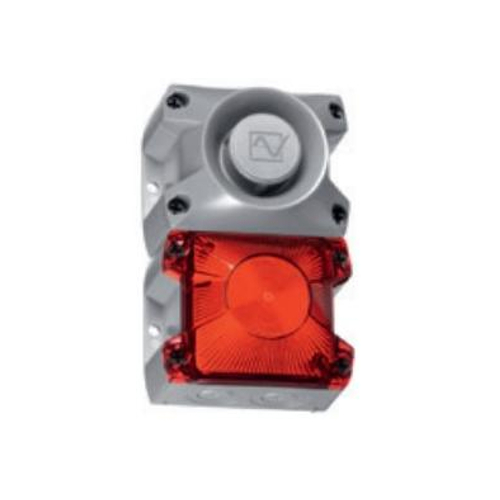

Pfannenberg, 233 1110 5055, PA X 1-05, Patrol Series Flashing Sounders with Grey Housing and Red Lens, 187 to 255 VAC

Patrol Series Flashing Sounder with 5 Joules Flash and offers 80 alarm tones - based on alarm circumstance - with 4 stages. This Signaling Device operates in any climate and can be surface or flush-panel mounted.

Features:

  • 1 Hz single flash xenon strobe light, 5 Joules
  • 80 alarm tones with 4 stages
  • Emit different tones based on alarm circumstances
  • Internal volume control
  • Polycarbonate/ABS blend housing
  • UL Type 4/4X, IP 66 ingress protection
  • 6.8 inch (172 mm) h x 4.3 inch (110 mm) w x 3.2 inch (81 mm) d
  • Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3
based on alarm circumstances
  • Internal volume control
  • Polycarbonate/ABS blend housing
  • UL Type 4/4X, IP 66 ingress protection
  • 6.8 inch (172 mm) h x 4.3 inch (110 mm) w x 3.2 inch (81 mm) d
  • Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3
    • See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Authorized Distributor

    Technical Details

    Reviews
    Sound pressure level100 dB(A)
    Sound level reductionmax. - 12 dB via potentiometer
    Alarm tones80 / 4 tones are externally selectable
    Flash energy and flash rate5 J at 1 Hz = 60 flashes/min
    Operating temperature-40 °C ... +55 °C
    Storage temperature-40 °C ... +70 °C
    Relative humidity90 %
    Protection system (EN 60529)IP 66
    Protection classII
    Service life of the light sourcelight emission still 70 % after 8,000,000 flashes
    MaterialSounder: PC / ABS blend similar to RAL 7035 (light grey)
    Lens flashing light: red polycarbonate (PC)
    Cable entry3x M20 knock-outs prepared (on side), 1 knock-out on back
    Integrated seal with cable entry6 - 13 mm (feed-through grommet)
    Connecting terminals2.5 mm2fine wire with cable end sleeve, AWG 16
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Sound pressure level100 dB(A)
    Sound level reductionmax. - 12 dB via potentiometer
    Alarm tones80 / 4 tones are externally selectable
    Flash energy and flash rate5 J at 1 Hz = 60 flashes/min
    Operating temperature-40 °C ... +55 °C
    Storage temperature-40 °C ... +70 °C
    Relative humidity90 %
    Protection system (EN 60529)IP 66
    Protection classII
    Service life of the light sourcelight emission still 70 % after 8,000,000 flashes
    MaterialSounder: PC / ABS blend similar to RAL 7035 (light grey)
    Lens flashing light: red polycarbonate (PC)
    Cable entry3x M20 knock-outs prepared (on side), 1 knock-out on back
    Integrated seal with cable entry6 - 13 mm (feed-through grommet)
    Connecting terminals2.5 mm2fine wire with cable end sleeve, AWG 16
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
