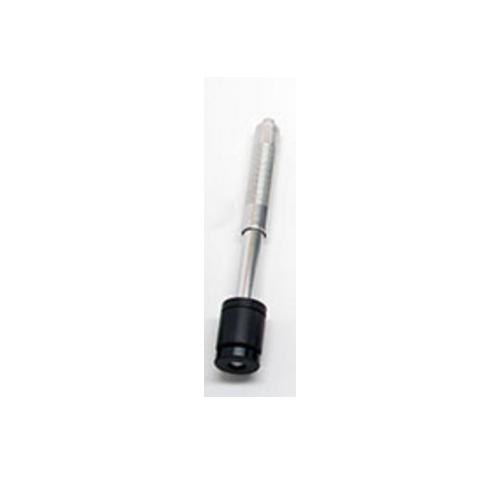

Phase II PHT1800-130 C Impact Device Probe

Impact Devices: C
  • Brand Phase II
  • Part # PHT1800-130
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Impact Devices:
Impact Devices: C

C Impact Device Probe

A reduced impact energy impact device(approximately 1/4 of the D Type 2 ft-lb.) for measuring the hardness of surface hardened components, coatings, thin wall or impact sensitive components. Applies a small superficial indentation.

Weight: 75g

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Impact Devices:D
Impact Energy:3Nmm
Mass of the Impact Body:3.0g
Test Tip:
Hardness:1600HV
Diameter:3mm
Material:Tungsten carbide
Impact device:
Diameter:20mm
Length:141mm
Weight:75g
Max. Hardness of Sample:1000HV
Preparation of Surface:
Roughness Class ISO:N5
Max. Roughness Depth Rt:2.5 µm
Average Roughness Ra:0.4 µm
Min. Weight of Sample:
Of Compact Shape:1.5kg
On Solid Support:0.5kg
Coupled on Plate:0.02kg
Min. Thickness of Sample:
Coupled:1mm
Min. Thickness of Layers:0.2mm
Indentation of Test Tip:
With 300 HV:
Diameter:0.38mm
Depth:12 µm
With 600 HV:
Diameter:0.32mm
Depth:8 µm
With 800 HV:
Diameter:0.30mm
Depth:7 µm
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Impact Devices:D
Impact Energy:3Nmm
Mass of the Impact Body:3.0g
Test Tip:
Hardness:1600HV
Diameter:3mm
Material:Tungsten carbide
Impact device:
Diameter:20mm
Length:141mm
Weight:75g
Max. Hardness of Sample:1000HV
Preparation of Surface:
Roughness Class ISO:N5
Max. Roughness Depth Rt:2.5 µm
Average Roughness Ra:0.4 µm
Min. Weight of Sample:
Of Compact Shape:1.5kg
On Solid Support:0.5kg
Coupled on Plate:0.02kg
Min. Thickness of Sample:
Coupled:1mm
Min. Thickness of Layers:0.2mm
Indentation of Test Tip:
With 300 HV:
Diameter:0.38mm
Depth:12 µm
With 600 HV:
Diameter:0.32mm
Depth:8 µm
With 800 HV:
Diameter:0.30mm
Depth:7 µm
