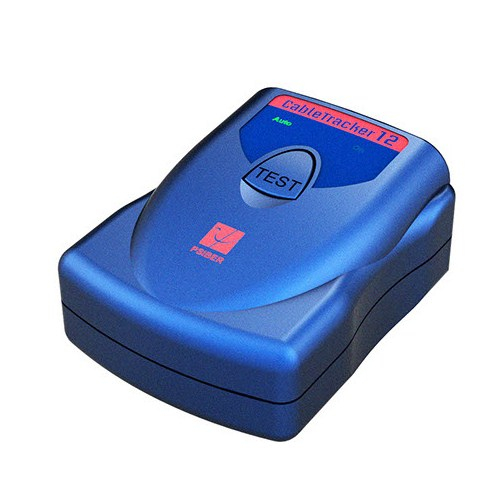

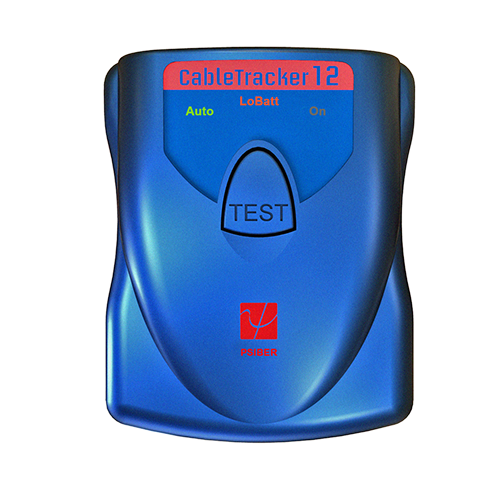

Psiber, CTK1215, CableTracker Ultra High Power Cable Tracing System Tone & Probe Kit
Easily identify and trace tone signals on high performance twisted pair, coaxial and even shielded cables.
The CableTracker 1215 Ultra High Power Tone Generator is up to 10 times more powerful than other generators.
The incredible 190mW power output helps you quickly and accurately solve the most difficult cabling installation and maintenance jobs.
Includes
- Tone Generator
- Probe
- Carrying Case
- RJ45 Patch Cable
- RJ45 to Alligator Clips Adapter
- User Guide
- 2 9V Batteries
Features
- Ultra High Power cable tracing system with 190 mW of output power
- Two selectable operating modes - continuous or auto power down
- Connection choice - RJ45 to alligator clip, or RJ45 Patch Cable
- Low battery indicator - Signal generator
- Non-conductive probe tip
- Power "On" indicator - Probe
- Volume Control
- Ergonomically designed.
Operation
The easy to use CableTracker 12 has two operating modes:
- "ON" transmits the tone signals continuously until the operator turns the unit off.
- "AUTO" transmits the tone signals for approximately 12 minutes and then shuts down to conserve battery life.
