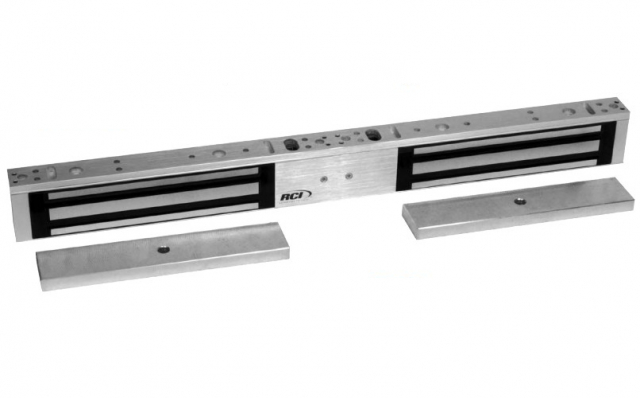

Rutherford Controls (RCI), 8372 DSS/SCS x 28, MiniMag Electromagnetic Lock, Double Magnet, Door Status Sensor and Security Condition Sensor, Brushed Anodized Aluminum (Standard)
Features:
- 1.04A Field-Selectable 12/24VDC (Max at 12VDC)
- Up to 750lbf Holding Force
- Stabilizing 4 bolt “drop stop" mounting
- Keyhole mounting for ease of installation
- Surge protection
- Designed to overcome residual magnetism
- Easy-access wiring cavity
- Available in Brushed Anodized Aluminum (28) or Brushed
- Anodized Dark Bronze (40) finish
- UL 294 Special Locking Arrangement Component (6th Edition)
- UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
- CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-hour
- California State Fire Marshal Listed (CSFM: 3774-2275:0500)
The Surface MiniMag® locks are designed with a 1-7/8" width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8372 Surface MiniMag® is used for double outswinging doors without mullions. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.
SCS - Security Condition Sensor Electronic field presence sensor for remote and local LED indication of lock status (locked or unlocked), reduced holding force caused by materials between magnet and plate and unlocked device due to voltage drop.
DSS - Door Status Sensor Magnet-reed type sensor for remote indication of door status (opened or closed) independent of local power. Magnet embedded in armature for tamper resistance; reed switch inside electronic housing cavity for easy access.
Applications:
- Single Outswinging Doors
- Single Inswinging Doors (use with TJ (Z) bracket (sold separatly))
