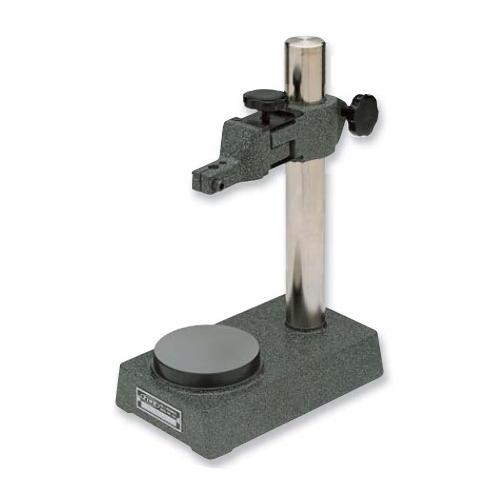

SPI 30-207-5 Comparator Stand

Features:

• Sturdy modern design for greater versatility.
• Base and indicator carriage are made of the finest Meehanite castings, hard-enamel finished.
• Rapid positioning with coarse adjustment.
• Unique fine adjustment assembly, backlash free.
• Fine adjustment range: 1/8"
• Bore for 3/8" dia. stem indicators.
• Hardened and ground anvil.
• 1-3/8" dia. chrome plated column.
• Length of column 10". Maximum clearance between anvil and indicator arm 7".
• Throat width: 3-3/4"
• Overall dimensions: 5" x 8" x 11"
