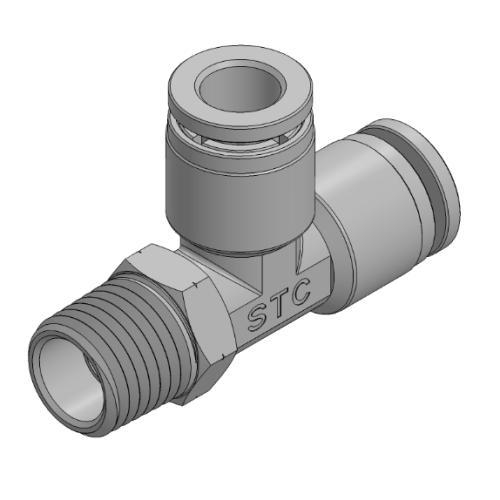

STC, RTS 5/16 N1/4 W, Run Tee 5/16" Tube OD X NPT 1/4", Gripper Style

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Shape	Run Tee (Swivel)
Body Material	T316 Stainless Steel
Release Button Material	300 Series Stainless Steel
Grip Ring or Collet Material	300 Series Stainless Steel
O-Ring Material	FKM
For Tube OD	5/16"
Pipe Size, Type	1/4" NPT
Operating Pressure Range	0 - 250PSI (0 - 1650kPa)
Vacuum	0 - 30" Hg (0 - 760 mm Hg)
Operating Temperature	5 - 230degF (-15 to 110degC)
Recommended Tubing Material	Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (metal tubing must be pre-grooved)
Service	Air, Liquid
Sterilization Temperature	Up to 280degF (138degC)
RoHS	Compliant

Shape	Run Tee (Swivel)
Body Material	T316 Stainless Steel
Release Button Material	300 Series Stainless Steel
Grip Ring or Collet Material	300 Series Stainless Steel
O-Ring Material	FKM
For Tube OD	5/16"
Pipe Size, Type	1/4" NPT
Operating Pressure Range	0 - 250PSI (0 - 1650kPa)
Vacuum	0 - 30" Hg (0 - 760 mm Hg)
Operating Temperature	5 - 230degF (-15 to 110degC)
Recommended Tubing Material	Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (metal tubing must be pre-grooved)
Service	Air, Liquid
Sterilization Temperature	Up to 280degF (138degC)
RoHS	Compliant

Note: Please read description carefully. Do not base your order on the picture presented.
