Tempo Communications, 915FS-KIT2, 52079878 Contractor Kit

The 915FS optical fusion splicer uses active cladding alignment technology which allows the technician to reliably fuse fiber optic cables with low splice losses. Active clad technology splicers provide a more cost effective splicing alternative to core alignment but still provides low splice losses which is ideally suited for FTTH installations. The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time.

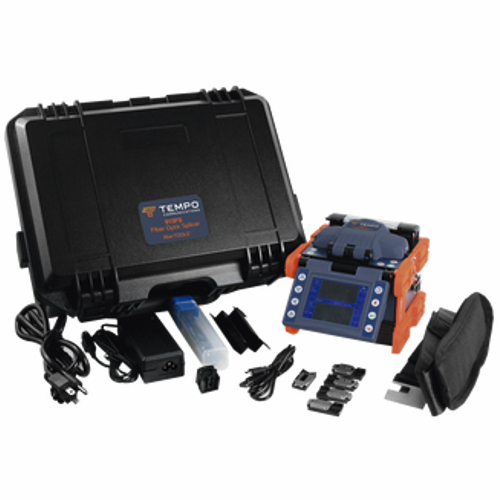

915FS-KIT2 Includes Only:

Carrying case
Tweezers
Extra set of electrodes
USB cable
250um adapters (pair)
900um adapters (pair)
SC/LC SOC Adapter
Splice on Connector oven insert
Allen key
Power supply
Line cord
Carrying strap
Cooling tray
Battery
Electrode Cleaner
915FS Optical Fusion Splicer
915CL Optical Fiber Cleaver
Fiber Optic Stripper
Extra battery

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Applicable Fibers

SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF

Fiber Cleaved Length

10mm

Cladding Diameter

80 to 150μm

Coating Diameter

100 to 1000μm

Fiber Count

Single

Fiber Aligning Method

Active Clad Alignment

Splice Loss (Typical)

0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF)

Splicing Mode

60 Preset / User Definable Modes

Splice Time (Typical)

7 seconds (Fast mode)

Boot Time

5 seconds

Number of Splices Per Battery Charge

200 (including 60mm heat shrink cycle) (90s/cycle splice time and power save functions activated. Number of cycles may vary depending on battery status and ambient operating conditions)

Splice-On-Connector

SC, LC, FC, ST

Arc Calibration Mode

Automatic and Manual

Protection Sleeve Length

60mm, 40mm, Micro Sleeves

Ingress Protection

IP5X (Dust); IPX2 (Water) (Dust resistance and rain resistance test do not guarantee that the product will not be damaged under these conditions.)

Storage Of Splice Results

5,000 Results, 100 screenshots

Drop Test

76cm on five axis

Vibration Resistance

10Hz to 500Hz with a spectral density of 0.03g2/Hz

Tension Test

Fiber Display Magnification

200X

Tube Heating Mode

20 Preset / User Definable Modes, Adjustable 0-240 seconds

Tube Heating Time (Typical)

18 seconds (Dependent on splice protector used and ambient conditions. Time quoted is with power mode enabled and assuming that the oven is not cold.)

Attenuator Mode

0.1 to 15 dB

Electrode Life

5,000 Splices

Display

3.5” Color, Turn-Over LCD

Connectivity

USB

Operating Conditions

Pressure: 0 to 16,404 feet (0 to 5,000 meters) above Sea Level
Wind Velocity up to 15m/s
Humidity: 0 to 95%Temperature: -13 to 122°F (-25 to 50°C)

Storage Conditions

Temperature: -40 to 140°F (-40 to 60°C)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Applicable Fibers

SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF

Fiber Cleaved Length

10mm

Cladding Diameter

80 to 150μm

Coating Diameter

100 to 1000μm

Fiber Count

Single

Fiber Aligning Method

Active Clad Alignment

Splice Loss (Typical)

0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF)

Splicing Mode

60 Preset / User Definable Modes

Splice Time (Typical)

7 seconds (Fast mode)

Boot Time

5 seconds

Number of Splices Per Battery Charge

200 (including 60mm heat shrink cycle) (90s/cycle splice time and power save functions activated. Number of cycles may vary depending on battery status and ambient operating conditions)

Splice-On-Connector

SC, LC, FC, ST

Arc Calibration Mode

Automatic and Manual

Protection Sleeve Length

60mm, 40mm, Micro Sleeves

Ingress Protection

IP5X (Dust); IPX2 (Water) (Dust resistance and rain resistance test do not guarantee that the product will not be damaged under these conditions.)

Storage Of Splice Results

5,000 Results, 100 screenshots

Drop Test

76cm on five axis

Vibration Resistance

10Hz to 500Hz with a spectral density of 0.03g2/Hz

Tension Test

Fiber Display Magnification

200X

Tube Heating Mode

20 Preset / User Definable Modes, Adjustable 0-240 seconds

Tube Heating Time (Typical)

18 seconds (Dependent on splice protector used and ambient conditions. Time quoted is with power mode enabled and assuming that the oven is not cold.)

Attenuator Mode

0.1 to 15 dB

Electrode Life

5,000 Splices

Display

3.5” Color, Turn-Over LCD

Connectivity

USB

Operating Conditions

Pressure: 0 to 16,404 feet (0 to 5,000 meters) above Sea Level
Wind Velocity up to 15m/s
Humidity: 0 to 95%Temperature: -13 to 122°F (-25 to 50°C)

Storage Conditions

Temperature: -40 to 140°F (-40 to 60°C)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
