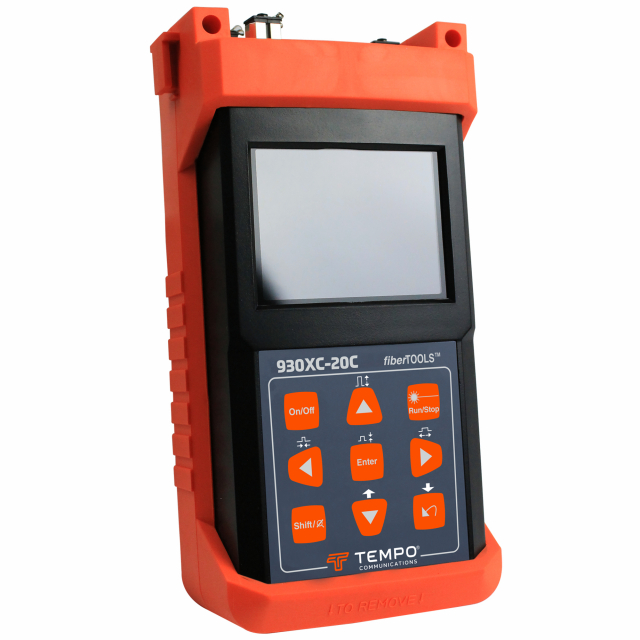

Tempo Communications, 930XC-20C-UPC-FC, Handheld Single-Mode OTDR, 1310 / 1550 nm, UPC, FC Connector (For UPC)

Includes:

Features:

Validate installed fiber networks for compliance to design requirements;
Monitor and troubleshoot faults in fiber links;
Short learning curve allows the technician to be productive quickly;
Locate faults quickly so that fiber installations can restored with low down time;
High dynamic range to shoot through high loss components;
Easy to use "single button" interface with "Auto Test" mode;
Bellcore GR196 compliant;
Optical power meter, stabilized laser source, and visual fault locator included standard with all models;
Free Trace Viewer documentation program is included with all kits;
Macrobend Analysis;
Link Viewer that provides a linear Pass / Fail analysis.

FAST :

ACCURATE :

RELIABLE :

Link Viewer annotates the entire fiber link in an easy to interpret Pass / Fail format.
Macrobend analysis locates troublesome fiber losses at 1550 nm.
Cable acceptance reports. Generate customized reports that include trace signature and fiber events.
Long life battery. Work longer without recharge – up to 8 hours continuous use.
Rugged construction. Drop-tested from 2 m., impact resistant and built to perform (GR-196 certified).
BellCore standard required by major telcos.
- Meets all specifications at specified temperature extremes.
- Operational and within specification after a simulated dust storm.
- EMI resistant as per GR-1089.
- Rain resistant with no direct paths.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Wavelength (± 20 nm)	1310/1550
Dynamic Range (dB)	35
Event Deadzone (m)	1 m.
Attenuation Deadzone (m)	4.5 m.
Pulsewidth	5, 10, 30, 100, 300, 1us, 2.5us, 10us, 20us
Selectable Ranges (km)	0.3, 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 240
Average Time	15s / 30s / 1 min / 2 min / 3 min
Distance Measurement Accuracy	± (1 m. + 5 X 10-5 x distance + sampling space)
Connector Type	FC
Reflection Detect Accuracy	±4 dB
Attenuation Detect Accuracy	±0.05 dB / dB
Measurement Data Storage	1,000 test curves
Data Transmission	RS-232 / USB port
Visual Fault Locator (VFL)	-3dBm; 650nm
Optical Power Meter (OPM)	InGaAs
OPM Wavelengths	850, 1300, 1310, 1490, 1550, 1625 nm
OPM Range	+6 to -70dBm (+6 to -60 dBm 850 nm)
OPM Display resolution	0.01 dB
OPM MOD Identification	1kHz, 2kHz
Stabilized laser Source (SLS)	Wavelength same as selected in OTDR mode ≤ -7dBm
Power Supply	NiMH chargeable battery / AC adapter
Battery Life	Support over 8 hours operating on one charge or over 20 hours standby
Operating Temperature	-10° to 50° C
Storage Temperature	-20° to 60° C
Relative Humidity	0 to 95% (non-condensing)
Weight	1.9 lbs. (0.87 kg)
Dimensions	7.7" H. x 3.9" W. x 2.4" L. (196 mm. x 100 mm. x 64 mm.)
Compliance	BelCore GR196, CE, FCC, UL, WEEE
Fiber Analysis Software	Version 3.2
Password Protection	Owner defined password feature (Recoverable)
