Options and Related Products

Mode of Optic Systems:: Mode of Optic Systems: Single

T27422LV Includes Only:

SC/SC (OPT046) Hybrid adaptors 1 per port
SC/LC (OPT076) Hybrid adaptors 1 per port
SC/ST (OPT040) Hybrid adaptors [only for T23400 & T27400 series with LED sources] 1 per port
1x SC PC Terminator (OPT703) [only for T23400 series]
1x SC APC Terminator (OPT704) [only for T23400 series]
1x SC-SCAPC SMF Test Lead (OPT730-SCP-SCA) [only for T23400 series with Laser sources]
1x SC-SCAPC MMF Test Lead (OPT706) [only for T23400 series with LED sources]
1xSC-SC(APC) MMF Test Lead (OPT740-SCP-SCA) [only for T23400 series with LED sources at 50 µm]
1 set 50 & 62.5 µm fiber mandrel wrap set for Multimode sources (OPT701) [only for T23400 & T27400 series with LED sources]
1x USB cable (A-B type)
1x Carry Pouch
1x Wrist Strap
1x Operation manual
1 set QA certificates
1 set ILAC/ NATA traceable calibration certificates including Power Meter, Light Source, Two-way detector

Test Applications

SM, MM & both fiber types
Tier 1 cable certification & reporting
Bidirectional loss, length & ORL in one hook-up with integrated VFL (VisiTester)
Optical power, continuity & polarity

Features:

25% of the size / weight, 7x the battery life of competitors
Bidirectional Autotest loss testing on one fiber
Real time Pass / Fail display
8,000 fiber memory and USB Flash Drive file dump
KITS™ reporting software
Autotest optical power meter, >25 λ, 1 % accuracy
Traceable calibration reports: power meter & linearity, source λ & stability
80 hr alkaline battery life

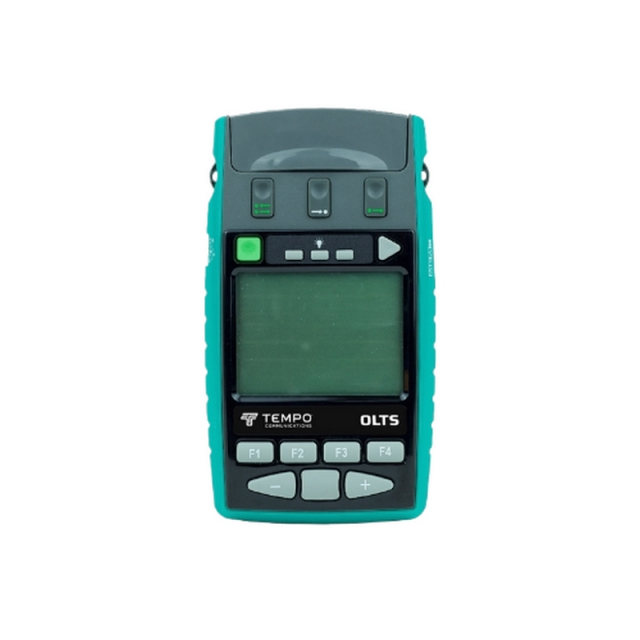

The T 2x400 series is a fast, accurate and easy bi-directional Tier 1 certifier for multimode and single mode fiber. 2-Way loss, length & ORL pass/fail are displayed in real time on both instruments,at multiple λ, for one test hook-up per fiber*. The compact instrument is also a standalone light source, optical power meter and VFL. The VisiTester feature mixes a VFL laser with the test signal, making a connected test fiber obvious at the other end.Excel-based reporting software provides tamper-proof and Standards-based certification and reporting, ensuring a combination of flexibility, productivity, and confidence. Datalogging, download and a real time mimic display are also included.

A Two-Way Optical Loss Test set (OLTS) that's perfect for medium to ultra high fiber count loss & length testing applications on single mode fiber at 1310/1550 nm. A pair of these compact instruments set new standards of productivity, accuracy and ease of use. The 650 nm VisiTester feature mixes a VFL in with the test signal during Autotest. In addition to operating as a typical VFL, it gives positive visual identification of a fiber to be connected for loss testing.

Each fiber needs just one test hook-up and one key press for a complete bidirectional loss test, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto flexible standards-compliant Tier 1 certification reports.

A pair of instruments both display bi-directional loss, in real time, with no need to specify master/slave instruments. A single instrument can also be used as a stand-alone light source & power meter, or tone generator / detector.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Attribute Name	Attribute Value
Modulated output (source)	270 Hz, 1 kHz, 2 kHz +- 2 %, 12 Multi-Fiber ID tones
Output wavelength (source)	Port 1: 1310-1550 nm Laser
Output power (source)	-7 dBm +-1 dB at SMF
Adjust output power (source)	Adjustable over 7 dB in 0.01 dB steps
Short term stability for 15 min, typical +-2 °C, after warm up, ORL < -25 dB (source)	0.04 dB
Stability over temperature (source)	0.6 dB (max)
Wavelength drift (source)	0.4 nm per °C (typical)
Wavelength initial tolerance at 25 °C (source)	20 nm
Spectrum width at FWHM (source)	3 nm (typical)
Reconnection repeatability at 95% confidence (source)	0.1 dB
Length range (2-way Autotest only)	27 dB
Length accuracy (2-way Autotest only)	0.01% +- 4 meters
Length resolutions:	1 meter (0.000~9.999 Km), 10 meters (10.00~99.99 Km), 100 meters (100.0~127.9 Km)
Loss range (2-way Autotest)	44 dB
Loss repeatability & loss linearity (2-way Autotest)	0.04 dB
Loss range (1-way Autotest)	44 dB
Loss repeatability & loss linearity (1-way Autotest)	0.04 dB
VisiTester wavelength	650 +- 5 nm
VisiTester power	0 dBm +- 1 dB at SMF
VisiTester laser safety	Class 1, IEC60825-2
VisiTester blink rate (manual)	CW or 2 Hz
Detector type (meter)	InGaAs
Response wavelength (meter)	600 ~ 1700 nm
Calibration wavelengths (meter)	780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm
Power range (meter)	+10 ~ -60 dBm (780 ~ 980, 1590 ~ 1650 nm) / +10 ~ -70 dBm (1270 ~ 1650 nm)
Accuracy (meter)	1 % (0.06 dB)
Mid-range linearity (meter)	0.04 dB (typical)
Total uncertainty (meter)	0.3 dB (max)
ID tone detection & Autotest sensitivity (meter)	Up to -50 dBm
Resolution (meter)	0.01 dB
Polarization sensitivity (meter)	< 0.05 dB (typical)
Tone detection (meter)	150 ~ 9999 Hz +- 1 %
Autotest	1-way: compatible with other T23400 & T27400 models / 2-way: compatible with identical model only
USB interfaces	USB-micro for power & software / USB-A Flash Drive
Software	KITS (free download)
Power	Battery / External power via micro-USB
Battery life	Laser/LED source: 80 hours (typical) in Autotest, Power Meter: 1000 hours (typical)
Battery type	2x AA (LR6) Alkaline / 2x AA NiMH AA (rechargeable via micro-USB)
Auto off	Selectable
Display	74 mm x 55 mm high contrast LCD
Case	Polycarbonate (body) / rubber (edges & corners), moisture resistance, 1-meter drop tested
Memory	For 8,000 fibers / Unlimited on USB Flash Drive
Size	190 mm x 105 mm x 35 mm
Unit weight	0.42 kg
Shipping weight	1.5 Kg
Operating / storage temperature	-15 to 55 °C / -25 to 70 °C
Relative humidity	0 ~ 95 %
Calibration validity (ISO/IEC 17025)	3 years
