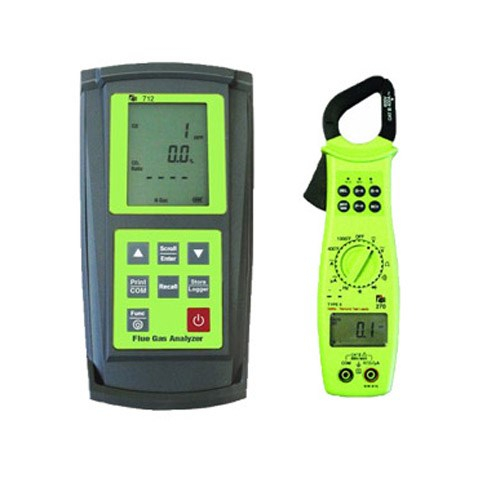

TPI Deluxe Flue Gas/Combustion Analyzer 712C5 with Optional PC Interface and Clamp Meter
Includes
- TPI 712 Instrument
- Rubber Boot (A765)
- Soft Carrying Case (A768)
- Flue Sampling Probe (A770)
- In-Line Filter installed on Flue probe (A762)
- Spare In-Line Filter (A762F, one included)
- Temperature Probe (GK11M)
- Battery Charger (A766)
- Mini Pump Protection Filter Assembly and spare filters (A763)
- Exhaust Spigot (removable) (A764)
- Pressure Tubing (A774)
- Static Pressure Tips (A776) x 2
- Barbed to 1/8" NPT fittings (2 each)
- Gas Valve Adapter (A611)
- Adapter Tubing
- Instruction Manual
Deluxe Combustion Efficiency Analyzer with Optional PC Interface.The carbon monoxide sensor used in TPI combustion efficiency analyzers feature an on-board filter capable of filtering NO (nitric oxide), NO2 (nitrogen dioxide) and NOX (combination of NO and NO2) to prevent cross sensitivity errors.
Use TPI analyzers to test flue gases in gas and oil fired equipment including high efficiency furnaces and condensing boilers. Measure CO, O2, and stack temperature.
Determine combustion efficiency, CO2, and CO air free. Built-in differential manometer, combustible gas detection, PC communication, and data logging.
Features
- Measure CO, and temperature
- Calculate CO2, efficiency, excess air, and CO air free
- Built-in differential manometer with 0.001" H2O resolution
- Calculates combustion efficiency
- Pump driven for fast response
- Will not shut off if 15 ppm CO is present for increased safety
- Ten selectable fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
- A740 IR printer available for hard copies of test results
- Built-in differential thermometer
- Store function to save up to 50 readings
- Large easy to read backlit display
- Rechargeable Ni-MH Battery with > 6 Hours battery life
- Optional PC interface
- Optional Bluetooth interface
Applications
- Tuning of residential and furnaces and domestic boilers
- Ambient and stack testing for CO
- CO safety measurements in and around combustion sources
- Temperature checking, including superheat and hydronic differential temperatures
- Detecting gas leak in gas lines and around gas fueled appliances. Dual input differential manometer with 3 selectable units of measure: kPa, mBar,inH20
All TPI analyzers feature quick and simple set up. Fast purge and the ability to perform fuel selection during start up enable tests to be performed quickly without requiring extra set-up time after initial startup. TPI analyzers also use the last selected fuel as the default setting. This feature prevents the need toper form fuel selection every time the analyzer is turned on.
Operating Instructions
The TPI 712 Flue Gas Analyzer is a state of the art, easy to use analyzer designed not only to display and calculate the required readings from a flue but also to cover most of the other measurements associated with combustion. The instrument is ruggedly constructed and comes with a 3 Year unit and 2 Year sensor Guarantee.
The TPI 712 combustion analyzer uses state of the art electrochemical sensors. This sensor technology provides the longest lasting, most accurate and reliable means for performing combustion tests. The sensors in your analyzer will need to be replaced periodically and calibration is recommended once every year.
Electrochemical sensors by nature are always active. Therefore the time the analyzer is off and not being used must be taken into account when determining sensor life. The sensors in your analyzer are warranted for two years. This warranty does not cover sensors damaged through misuse of the analyzer.
Keep the battery of the 712 charged so power is constantly being supplied to the sensors.
The following guidelines will help prevent damage to the sensors:
- Always use the mini pump filter when testing flue gases.
- Always periodically check and replace the mini pump filter as needed.
- Always make sure the in-line filter / water trap is installed properly.
- Always periodically check and replace the in-line filter as needed.
- Always remove water or condensation from the inside of the in-line filter / water trap assembly prior to performing tests.
- Always use the optional oil filter (p/n A773) when performing tests on oil burning equipment.
- Never over saturate your sensors by performing tests on equipment with gas levels beyond the capability of you analyzer.
- Always keep the A762 water trap / filter assembly clean and replace the filter as necessary. Replacement filter part number is A762F.
Using TPI analyzers to determine combustion efficiency at the time of equipment set up minimizes call backs and can be used to verify to the home owner the value of service work by showing the increase in equipment efficiency after work is performed. Efficiency calculation can also be used to generate business by demonstrating the need to improve the efficiency of equipment or to show the benefit of purchasing new equipment with higher efficiency
The TPI 712 Flue Gas Analyzer has the following options available:
- PC Software for analysis of Data Logging results
- Infrared PC link for non compatible PCs
- Various Temperature Probes
Instrument Overview
Front View
Rubber Boot:Protects the instrument from accidental damage
Display:Large 3 Parameter backlit LCD Display
Battery Condition Icon:Shows condition of rechargeable batteries.
Keypad:Selects all available functions
Selected Fuel Type:N GAS, LPG, LIGHT OIL, HEAVY OIL, OPT 1 (Bituminous Coal), OPT 2 (Anthracite Coal), OPT 3 (Coke), OPT 4 (Butane), OPT 5 (Wood), OPT 6 (Bagasse)
Back View
Sample and Pressure Inlet Ports:Connection for Gas Sampling Probe
Calibration and Information Label:Displays calibration information and Displays serial number
Battery Compartment:Holds rechargeable battery
Rubber Boot:Protects the instrument
Side Views
Exhaust Port:Port for connection of Exhaust Adapter
Infrared Window:Window for sending stored data to IR Printer or PC
Rubber Boot:Protects the instrument from accidental damage
Top View
Charger Socket:Connection for 220V/115V charger
T1 Socket:Connection for thermocouple plug on flue probe. Connection for any 'K' type thermocouple probe
T2 Socket:Connection for any 'K' type thermocouple probe
Gas Sample Port:Connection for Gas Sampling Probe
P (+) Port:Connections for Pressure Tubing
P (-) Port:Connections for Pressure Tubing
Tech Tips
Several factors affect combustion efficiency.
Dirty or clogged air filters reduce the amount of air available for combustion therefore reducing efficiency. Obstructions in the flue block exhaust gases and alter the air mixture in the combustion chamber which reduces efficiency. Air leaks in the combustion chamber also alter the mixture causing decreased efficiency.
The primary way to affect change in combustion efficiency when working with modern gas fired equipment is through gas manifold pressure adjustment.
Confirm manifold pressures are within manufacturers specifications prior to performing a combustion test. Once manifold pressures are within limits a combustion test can be performed to provide information regarding any adjustments that may be needed.
10,000ppm is equal to 1%.
The formula to convert percent to ppm is: ppm = %gas X 10,000. The formula to convert ppm to percent is: % = ppm / 10,000.
The 709, 712, and 714 incorporate a differential manometer.
Pressure applied to the (-) port is subtracted from the pressure applied to the (+) port. Examples of pressures being measured:
- (+) port = 10" H2O, (-) port = Not Connected, Displayed reading =10" H2O
- (+) port = 10" H2O, (-) port = 5"H2O, Displayed reading = 5"H2O
- (+) port = Not Connected, (-) port = 10" H2O, Displayed reading = -10" H2O
Sensor Calibration
The sensors in your analyzer will need to be replaced periodically and calibration is recommended once every year. Electrochemical sensors by nature are always active. Therefore the time the analyzer is off and not being used must be taken into account when determining sensor life. The sensors in your analyzer are warranted for two years. This warranty does not cover sensors damaged through misuse of the analyzer.
Frequently Asked Questions
When should I use the optional A773 oil filter?
If your analyzer is used in an oil fuel application the A773 filter should be used. This filter does not have to be removed for other fuel types.
Should I set my analyzer to net or gross efficiency?
Gross efficiency is the correct choice for applications in the United States.
Can I use any of the TPI analyzers to test for the presence of combustible gas in the flue?
Yes, the 712 has the ability to test for combustible gases in the flue.
Can I log and send test data to a computer?
Yes, the 712 and 714 have the ability to communicate to a computer by using the optional A767 infrared adapter.
Can I test for CO in ambient air?
Yes, the 708, 709, 712, and 714 can all test for carbon monoxide in ambient air.
Do any of the TPI analyzers have a built in manometer?
Yes, the 709, 712, and 714 have built in differential manometers.
270 Clamp Meter
Perfect for tight, narrow, spaces. The new TPI 270 with slim jaw and body is ideal for cramped work areas and crowded electrical panels.
The slim design 270 is a hand-held, autoranging clamp-on DMM. Extra large numerals, min/max, capacitance, DC microamps and duty cycle are just a few of the features of the 270. An affordable choice, the 270 offers measurements in all basic electrical functions with additional advanced features like non-contact voltage.
Includes
- Clamp Meter
- Carrying Pouch
- Test Lead Set
- Temperature Probe
- Instruction Manual
- Battery & Fuse
Features
- 400 Amps AC
- Measure motor in-rush current and run current
- Measure temperature differential using relative mode
- Frequency, Min/Max/Record, Data Hold and Peak Hold
- Up to 40,000 microfarads to test start and run capacitors
- 4,000 count display with 41 segment analog bar graph
- CAT III 600V rated
- cULus 61010
- 3-year limited warranty
Applications
- Measure flame safety control current
- Test run and start capacitors and motors
- Measure motor run current and capture peak motor start up amperage
- Measure heat anticipator current
- Determine thermocouple voltage
- Test line and control voltages
- Measure heating element resistance
- Measure air temperature in ducts
- Test for the presence of voltage in circuits without contacting the circuit
- Measure temperature differential using relative mode
Perform the following tests and/or measurements with the 270 and the appropriate function:
HVAC/R
DCmV • Thermocouples in furnaces.
ACA • Heat anticipator current in thermostats.
ACV • Line voltage.
ACV or DCV • Control circuit voltage.
OHMS • Compressor winding resistance.
OHMS • Continuity of wiring.
CAP • Motor start and run capacitors.
ACA • Motor and compressor start up current.
Hz • Frequency on controls and line voltage.
TEMP • Air duct temperatures
ALL • Bar graph to indicate rapid fluctuations
ELECTRICAL
ACV • Measure line voltage.
ACA • Measure line current.
OHMS • Continuity of circuit breakers.
DCV • Voltage of direct drive DC motors.
ACA • Start up current of motors, relays, contactors and transformers.
ELECTRONIC
ACV • Measure power supply voltage.
ACA • Measure power supply current.
OHMS • Continuity of circuit breakers and fuses.
Frequently Asked Questions
1. How does the non-contact voltage feature of the TPI 270 and 275 benefit me?
The non-contact feature of the TPI 270 and 275 allows you to detect live circuits without using the test leads, which enables faster checks for the presence of voltage.
2. Which of the TPI clamp-on meters will measure temperature?
The 270 and 275 have this feature built in and the 255, 265, and 291 can measure temperature by using the optional A301 or a A312 K-type thermocouple adapters.
3. Which TPI clamp-ons can measure DC microamps?
The TPI 270 and 275 has the capability to measure DC microamps by using the test leads. This is very useful for making flame safety control current measurements. The 265 can measure DC microamps with the optional A213 adapter.
4. Does a clamp-on meter measure anything besides amps?
All TPI clamp-on meters measure AC/DC volts and resistance. Models are available with temperature, frequency, capacitance, and non-contact voltage detection capability as well as many other features. Various adapters including temperature (A301 or A312), carbon monoxide (A771), and pressure (A620/630) are available. Contact TPI for additional information.
5. Is it possible to measure AC amps on a device that uses a power cord?
Yes, to accomplish this you can use the TPI line splitter (A202). AC amps must be measured by isolating a single wire and the A202 line splitter does this without damaging the power cord.
