UEi 511KIT Heat Pump Install Kit

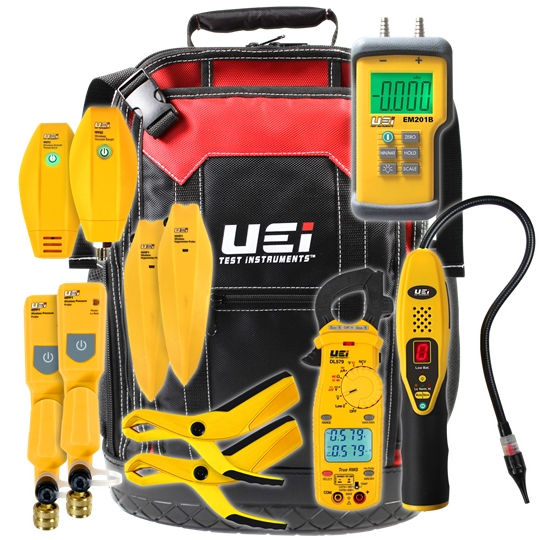

511KIT Includes Only:

• Meter DL579

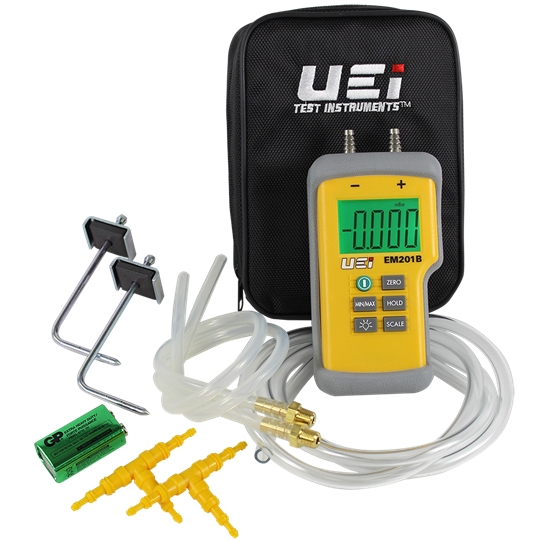

• Manometer EM201SPKIT

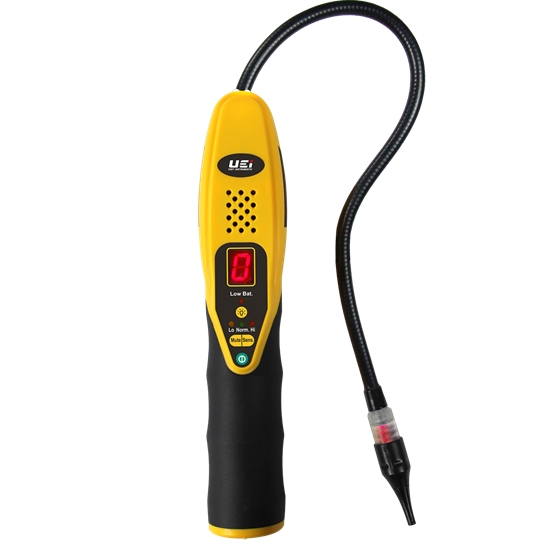

• Leak Detector RLD15B

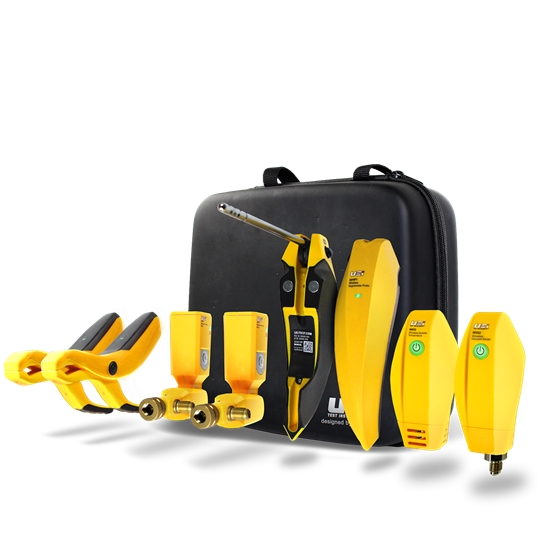

• Wireless Outside Temperature Probe WOT2
• Wireless Hygrometer probe WHP1 (2)
• Wireless Vacuum Gouge Probe WVG2
• Wireless Pressure Probe WPP1 (2)
• Wireless Pipe Clamp Probes WPC2 (2)
• Tool Backpack AC550

Features:

• Hold Yes
• Min/Max Yes
• Auto power off Yes
• Display count 6000
• Dual display Yes
• Temperature Inputs K-Type
• Digital numeric leak indicator Yes
• K-type input Yes
• Digital Yes

This Kit provides the recommended test instruments required by heat pump start up manuals for proper installation and maintenance.

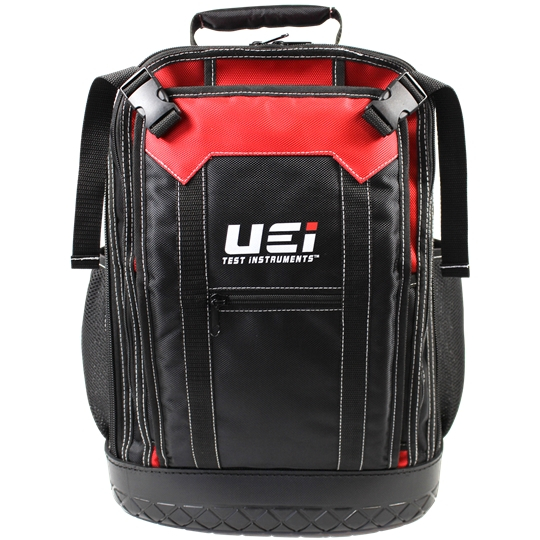

511KIT is packed in this UEi Tool Backpack. Built rugged, waterproof base, two compartments with inner pocket options and includes D-clip.

This equipment helps confirm:

• CFM via external static pressure test
• System is free from refrigerant leaks
• Proper high voltage to power supply and ground
• Low voltage meets wiring diagram requirements
• Evacuation Suction and Liquid valves
• Temperatures of Suction and Liquid lines
• Superheat and Subcool values for adjustments
