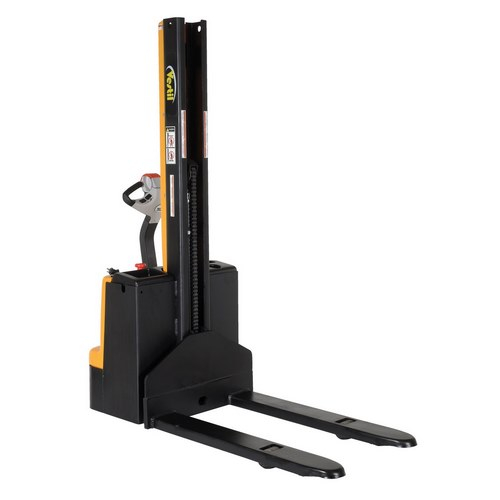

Vestil SNM15-62-FF-27 Stacker Power Lift/Drive Fixed fork 62" 1500 Lb

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Features 1.0 KW drive and 2.0 KW lift motor. 3-4 h operation at full charge - 8 hs when used intermittently. Proprietary safety enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Features:

• Narrow mast stacker is ideal for shipping and manufacturing facilities
• Stacker is an efficient solution to loading and unloading in closely confined areas
• Throttle design lifts and controls speed adjustments for ideal operation and optimal results
• Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency
