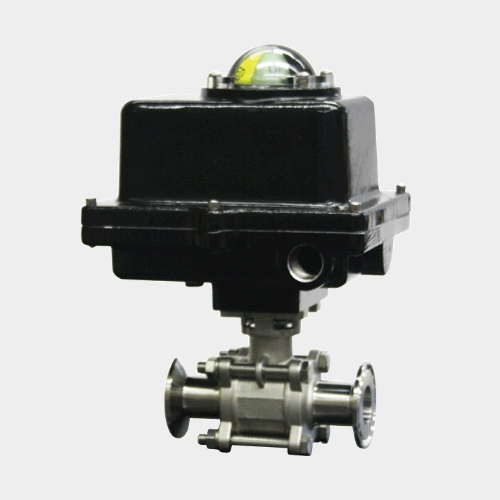

W.E. Anderson WE03-HMI02 2" Ball Valve, Tri-Clamp, Modulating

Size: 2", Options: Exp. Proof Modulating Electric Actuator
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Size:
Size: 2"
Options:
Options: Exp. Proof Modulating Electric Actuator

W.E. Anderson, WE03-HMI02, 2" Ball Valve, Tri-Clamp, Explosion Electric Modulating (1" to 2")

The Series WE03 incorporates a full port 3-piece tri-clamp SS ball valve for great flow rates with minimal pressure drop. The valve features a blowout proof stem for added safety, reinforced PTFE seats and seals for longer life, and a 316 SS (ASTM CF8M) ball for better performance. Actuators are direct mounted creating a compact assembly for tight spaces. Limit switches are able to be mounted directly to the valves allowing for remote position indication.

Explosion-proof modulating control actuators accepts a 4 to 20 mA input for valve positioning. Actuators feature thermal overload protection and permanently lubricated gear train.

Features

  • Capable of being configured to fit any application
  • Limit switches can be mounted to manual valves for remote monitoring
  • Cavity filled valve for sanitary applications
  • Explosion-proof electric actuator
  • Full port design reduces the pressure drop across the valve

Applications

  • Gas or liquid flow control
  • Ideal for quick bubble tight shut-off
  • Designed for food and beverage applications
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Valve
ServiceCompatible liquids and gases
Body3-piece
Line Size2"
End ConnectionsTri-clamp
Pressure Limit28" Hg to 1000 psi (-0.7 to 69 bar) up to 250 DegF
Wetted MaterialsBody and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/ PTFE; Seal, Washer, and Packing: PTFE
Temperature Limit-20 to 392°F (-29 to 200°C)
Other MaterialsO-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC
Actuator
Enclosure RatingNEMA 7, designed to meet hazardous locations: Class I, Group C & D; Class II, Group E, F & G; Division I & II
Housing Material Powder coated aluminum
Temperature Limits-40 to 140°F (-40 to 60°C)
Electrical Connection 1/2" female NPT
Modulating Input 4 to 20 mA
Standard FeaturesPosition indicator and two limit switches
Product Details
Valve
ServiceCompatible liquids and gases
Body3-piece
Line Size2"
End ConnectionsTri-clamp
Pressure Limit28" Hg to 1000 psi (-0.7 to 69 bar) up to 250 DegF
Wetted MaterialsBody and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/ PTFE; Seal, Washer, and Packing: PTFE
Temperature Limit-20 to 392°F (-29 to 200°C)
Other MaterialsO-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC
Actuator
Enclosure RatingNEMA 7, designed to meet hazardous locations: Class I, Group C & D; Class II, Group E, F & G; Division I & II
Housing Material Powder coated aluminum
Temperature Limits-40 to 140°F (-40 to 60°C)
Electrical Connection 1/2" female NPT
Modulating Input 4 to 20 mA
Standard FeaturesPosition indicator and two limit switches
Note

Note: Please read description carefully. Do not base your order on the picture presented.
