3B Scientific, UE1050700-230, Experiment for Mechanic: Mechanical Waves, 230 V, 50/60 Hz
UE1050700-230 Includes Only:
- Accessories for Spring Oscillations
- Accessories for Rope Waves
- Vibration Generator
- Function Generator FG 100 (230 V, 50/60 Hz)
- Precision Dynamometer, 2 N
- Pocket Measuring Tape, 2 m
- Pair of Safety Experiment Leads, 75 cm, blue, red
Features:

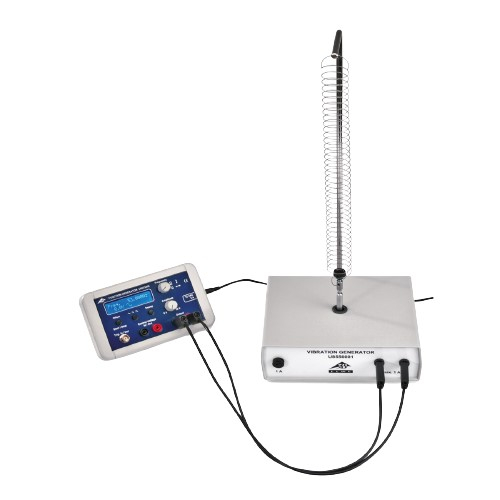

Some examples of where mechanical waves arise include a stretched coil spring, where the waves are longitudinal, or a taut rope where the waves are transverse. In either case, standing waves will be set up if one end of the carrier medium is fixed. This is because the incoming wave and the wave reflected at the fixed end have the same amplitude and are superimposed on one another. If the other end is also fixed, the only way that waves can propagate is if resonance conditions are met. In this experiment the coil spring and the rope are fixed at one end. The other end, a distance L from the fixed point, is fixed to a vibration generator, which uses a function generator to drive small-amplitude oscillations of variable frequency f. This end can also be regarded as a fixed point to a good approximation. The intrinsic frequency of the vibration will be measured as a function of the number of nodes in the standing wave. The speed of propagation of the wave can then be calculated from this data.
For more information, please see
Data Sheet
