Elenco TCT-355 Pro'sKit Multi-Modular Cable Tester

  • Brand Elenco
  • Part # TCT-355
  • Model # Pro'sKit
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Pro'sKit DataCom Tester

The TCT-355 Cable Tester is a convenient instrument for testing different shielded/unshielded communication cable with RJ-11 & RJ-45 connectors and coax cable (BNC). This tester can be used for testing cables before and/or after they are installed. Testing status is indicated by multiple LEDs. Soft vinyl case provides storage for tester; remote and terminator.

Includes:

  • tester
  • remote
  • terminator
  • soft case

Features:

  • Tests RJ45 TIA568A/B (AT&T 258A), 10 Base-T, Token ring, RJ-11/ RJ-12 USOC and Coaxial BNC cable.
  • Automatically check cable for continuity; shorted; open and crossed wire pairs.
  • Coaxial cable port identifies cable condition including shorts; shield opens and center conductor breaks.

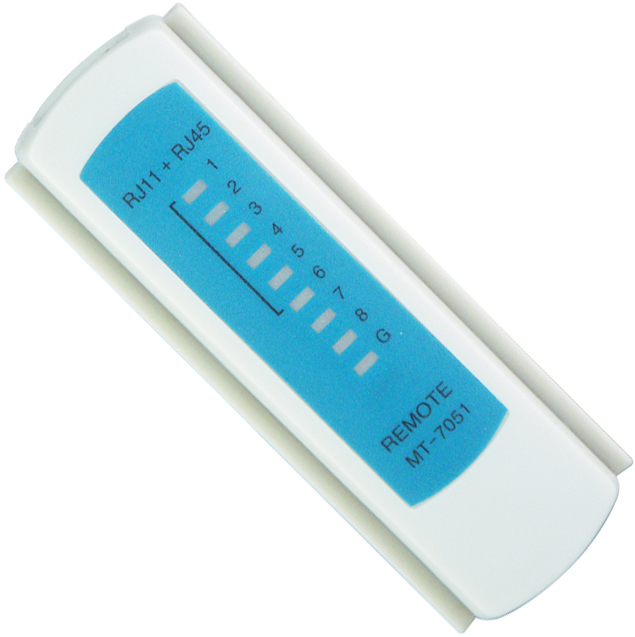

  • Main unit and remote allow one person testing.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Cable CategoryShielded/unshielded communication cable with RJ-11 and RJ-45 connectors
Ethernet 10 Base-T, Token Ring, EIA/TIA-568A/B, AT&T 258A, and USOC
50 or 75Ω coaxial cable with BNC connectors
50 or 75Ω coaxial cable with F connectors. Must use BNC to F adapters (not supplied)
Maximum testing length for all cable types is 1,000 feet.
Multiple FunctionsTesting cables before or after their installation
Mapping Function (to test individual wire pairs or coaxial cables)
Cable identification (straight or cross-pinning)
Pair identification (straight or cross-pinning)
Open/short wiring test
Shield opens
Automatic two speeds
Environmental Comditions
Operating0°C - 45°C / 32°F - 113°F 70% RH max.
Storage-10°C - 50°C / 14°F - 122°F 80% RH max.
PowerStandard or alkaline 9V battery
Notes

***

warningWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
Cable CategoryShielded/unshielded communication cable with RJ-11 and RJ-45 connectors
Ethernet 10 Base-T, Token Ring, EIA/TIA-568A/B, AT&T 258A, and USOC
50 or 75Ω coaxial cable with BNC connectors
50 or 75Ω coaxial cable with F connectors. Must use BNC to F adapters (not supplied)
Maximum testing length for all cable types is 1,000 feet.
Multiple FunctionsTesting cables before or after their installation
Mapping Function (to test individual wire pairs or coaxial cables)
Cable identification (straight or cross-pinning)
Pair identification (straight or cross-pinning)
Open/short wiring test
Shield opens
Automatic two speeds
Environmental Comditions
Operating0°C - 45°C / 32°F - 113°F 70% RH max.
Storage-10°C - 50°C / 14°F - 122°F 80% RH max.
PowerStandard or alkaline 9V battery
Note

Note: Please read description carefully. Do not base your order on the picture presented.
